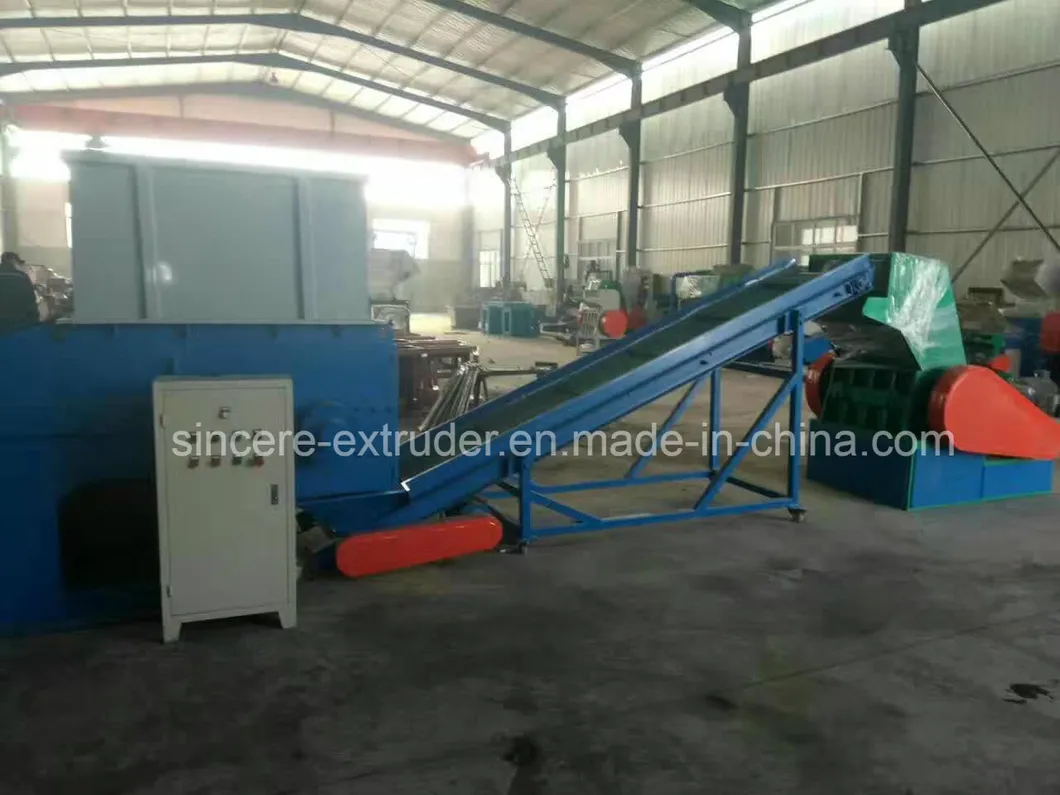

Single Shaft Shredder, HDPE Pipe Shredder, Plastic Film Shredder
Crusher, Shredder, Knives for crusher, grinding machineThe SWP series plastic crusher is mainly used for crushing plastic and rubber products: SWP100, SWP160, SWP200, SWP300, SWP320 are mainly used for crushing film, yarn, block, rod, pipe and profile, etc. SWP260, SWP360 are mainly used for crushin......
Send Inquiry
Product Description

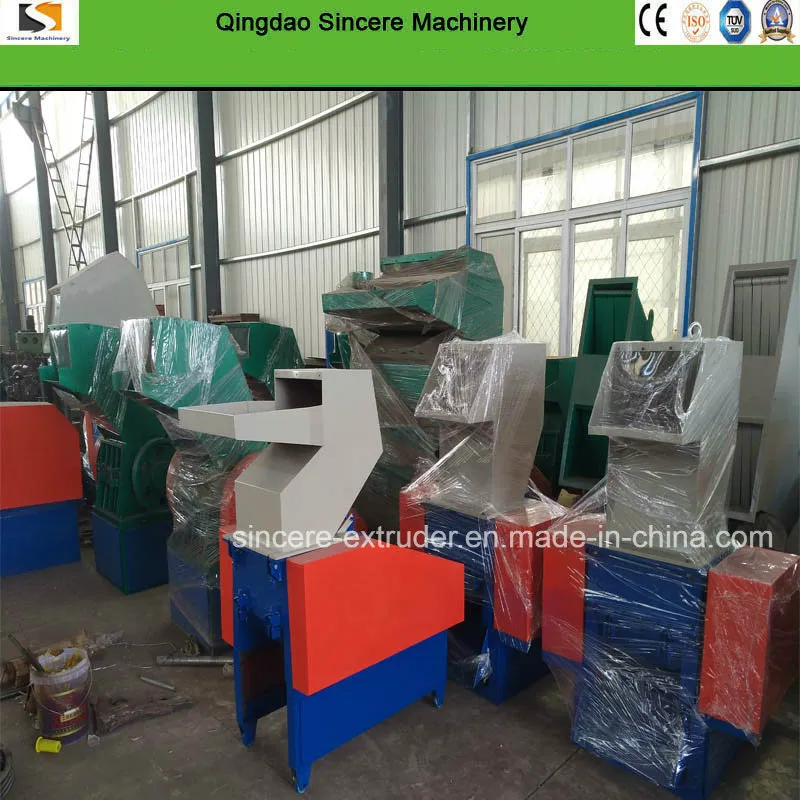

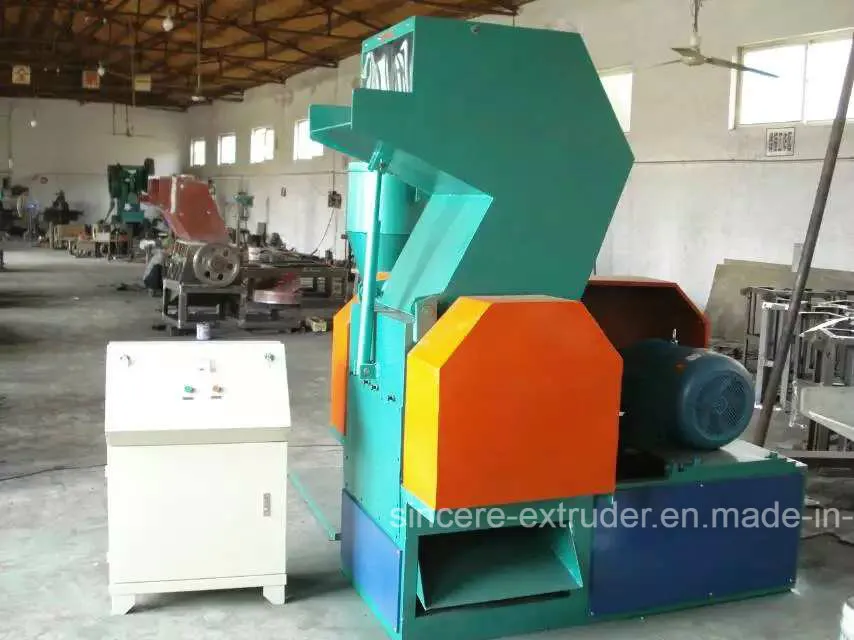

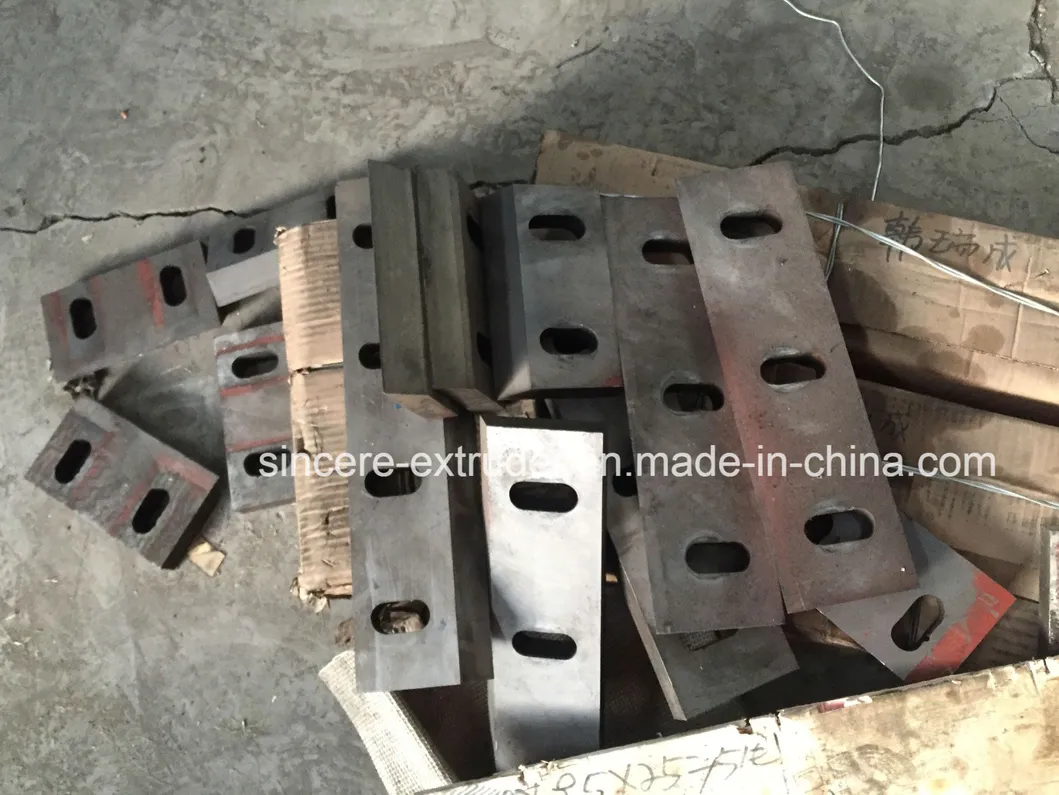

Crusher, Shredder, Knives for crusher, grinding machine
The SWP series plastic crusher is mainly used for crushing plastic and rubber products:
SWP100, SWP160, SWP200, SWP300, SWP320 are mainly used for crushing film, yarn, block, rod, pipe and profile, etc.
SWP260, SWP360 are mainly used for crushing block, rod, container, etc.
SWP450, SWP630 are mainly used for crushing pipe, profile, rod, plate, sheet, board strip, etc.
SP-120, SP-250 are mainly equipped with small power injection machine, used for crushing the leftovers of the injection machine.
SWP650, SWP800, SWP1000 are mainly used for crushing beer cases, buckets, and such hollow containers.
We also produce artificial marble crusher.
Crusher PC series for soft films and so on.
Plastic Shredder, single shaft shredder, double shaft shredder.
Ekaterina
+8615726275773
The SWP series plastic crusher is mainly used for crushing plastic and rubber products:
SWP100, SWP160, SWP200, SWP300, SWP320 are mainly used for crushing film, yarn, block, rod, pipe and profile, etc.
SWP260, SWP360 are mainly used for crushing block, rod, container, etc.
SWP450, SWP630 are mainly used for crushing pipe, profile, rod, plate, sheet, board strip, etc.
SP-120, SP-250 are mainly equipped with small power injection machine, used for crushing the leftovers of the injection machine.
SWP650, SWP800, SWP1000 are mainly used for crushing beer cases, buckets, and such hollow containers.
We also produce artificial marble crusher.
Crusher PC series for soft films and so on.
| Model | Rotating knife dia.(mm) | Rotating knife quantity (pcs) | Fixed knife quantity (pcs) | Hole dia. of sieve (mm) | Particle size (mm) | Capacity (kg) | Power (kw) | Overall dimension (mm) | Total weight (kg) |
| SWP100 | 100 | 2 | 2 | 3-5 | 2-4 | 50 | 1.5 | 600×400×800 | 120 |
| SWP160 | 160 | 3 | 2 | 6-10 | 4-8 | 100-150 | 3 | 790×600×1175 | 300 |
| SWP200 | 200 | 3 | 2 | 6-10 | 4-8 | 100-200 | 4 | 800×640×1450 | 300 |
| SWP260 | 260 | 3 | 2 | 6-10 | 4-8 | 100-200 | 4 | 800×1000×1200 | 200 |
| SWP300 | 300 | 3 | 2 | 6-10 | 4-8 | 200-300 | 11 | 1245×880×1720 | 660 |
| SWP2232 | 220 | 12 | 2 | 6-10 | 4-8 | 200-250 | 5.5 | 1000×800×1200 | 360 |
| SWP360 | 360 | 3 | 2 | 6-10 | 4-8 | 350-400 | 11 | 1600×1100×1400 | 750 |
| SWP380 | 380 | 15 | 2 | 8-12 | 8-10 | 200-500 | 15 | 2180×1020×1810 | 1200 |
| SWP450 | 450 | 9 | 2 | 6-10 | 6-8 | 250-400 | 22 | 2080×1500×2120 | 1480 |
| SWP500 | 500 | 35 | 4 | 12 | 6-9 | 700-800 | 30 | 2535×1590×3000 | 3000 |
| SWP630 | 630 | 60 | 4 | 12 | 6-9 | 700-800 | 30 | 1900×1500×3500 | 6500 |
| SWP800 | 800 | 10 | 4 | 12 | 6-8 | 800-1000 | 55 | 1000×1500×3500 | 6500 |
| SWP3040 | 280 | 15 | 2 | 8-10 | 8-10 | 200-300 | 7.5 | 1000×1200×1030 | 450 |
| SWP120 | 120 | 8 | 2 | 6 | 6 | 50 | 0.75 | 600×760×1030 | 100 |
| SWP250 | 250 | 8 | 2 | 6 | 6 | 80 | 2.2 | 1000×900×1100 | 180 |

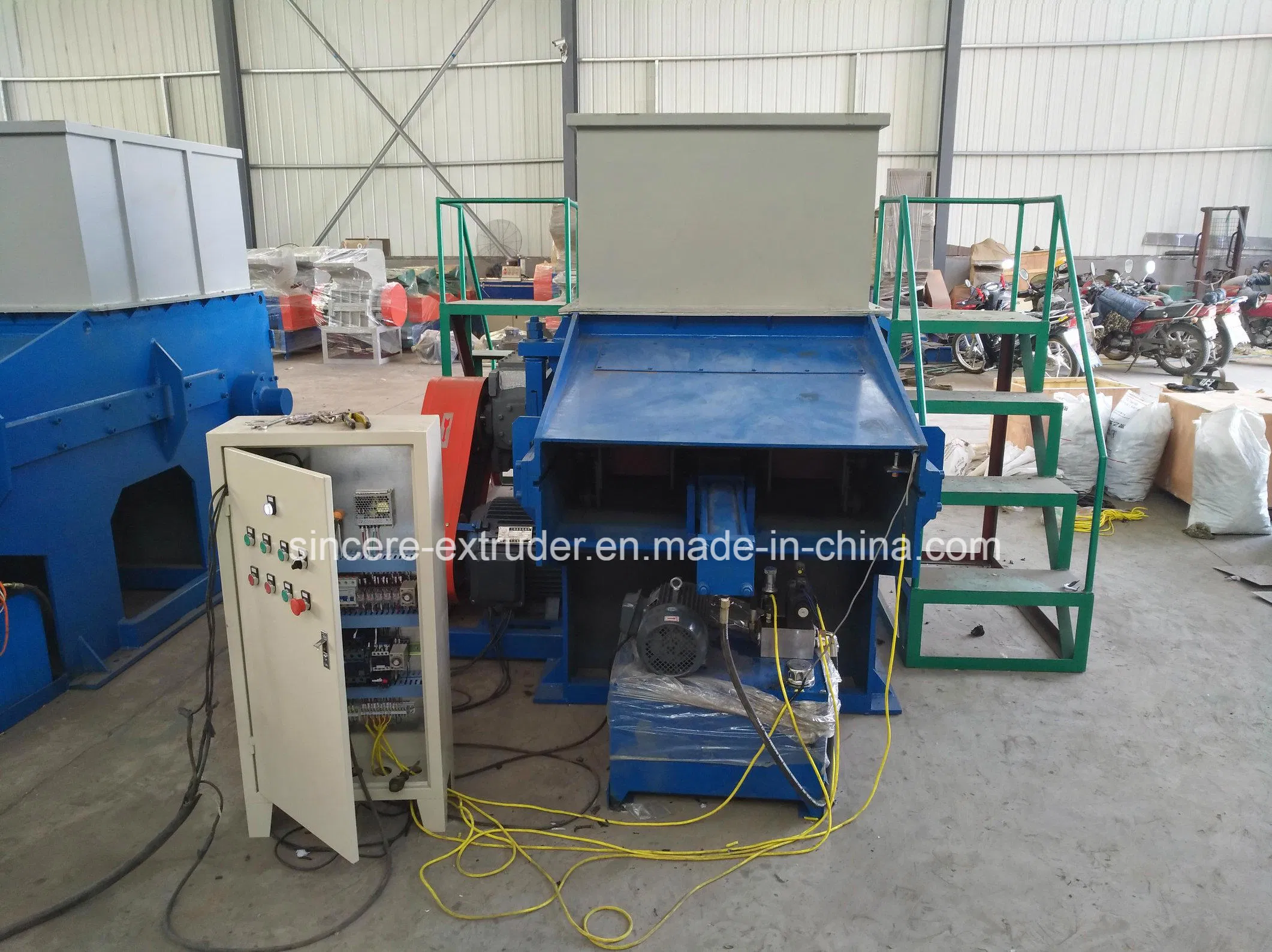

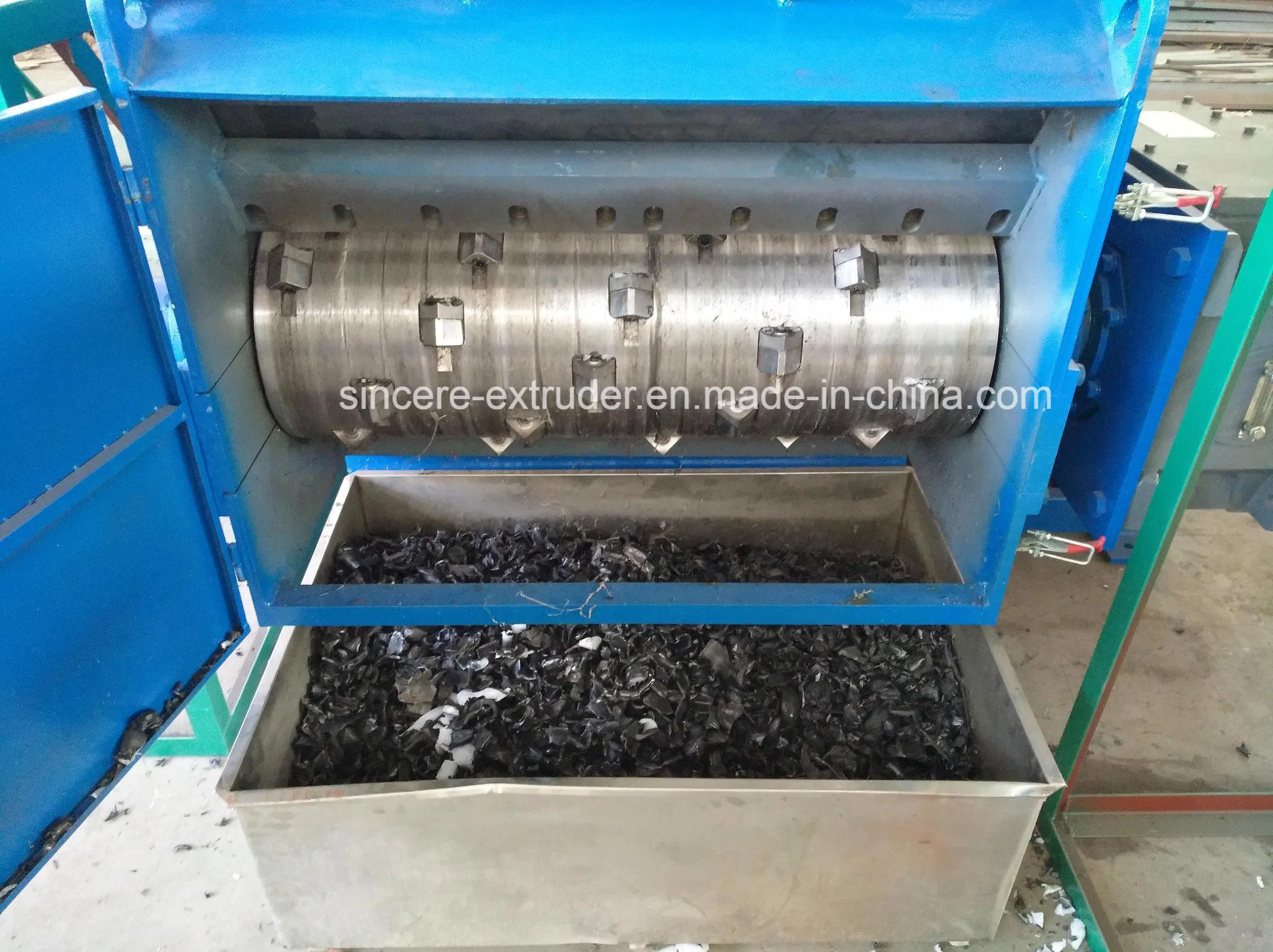

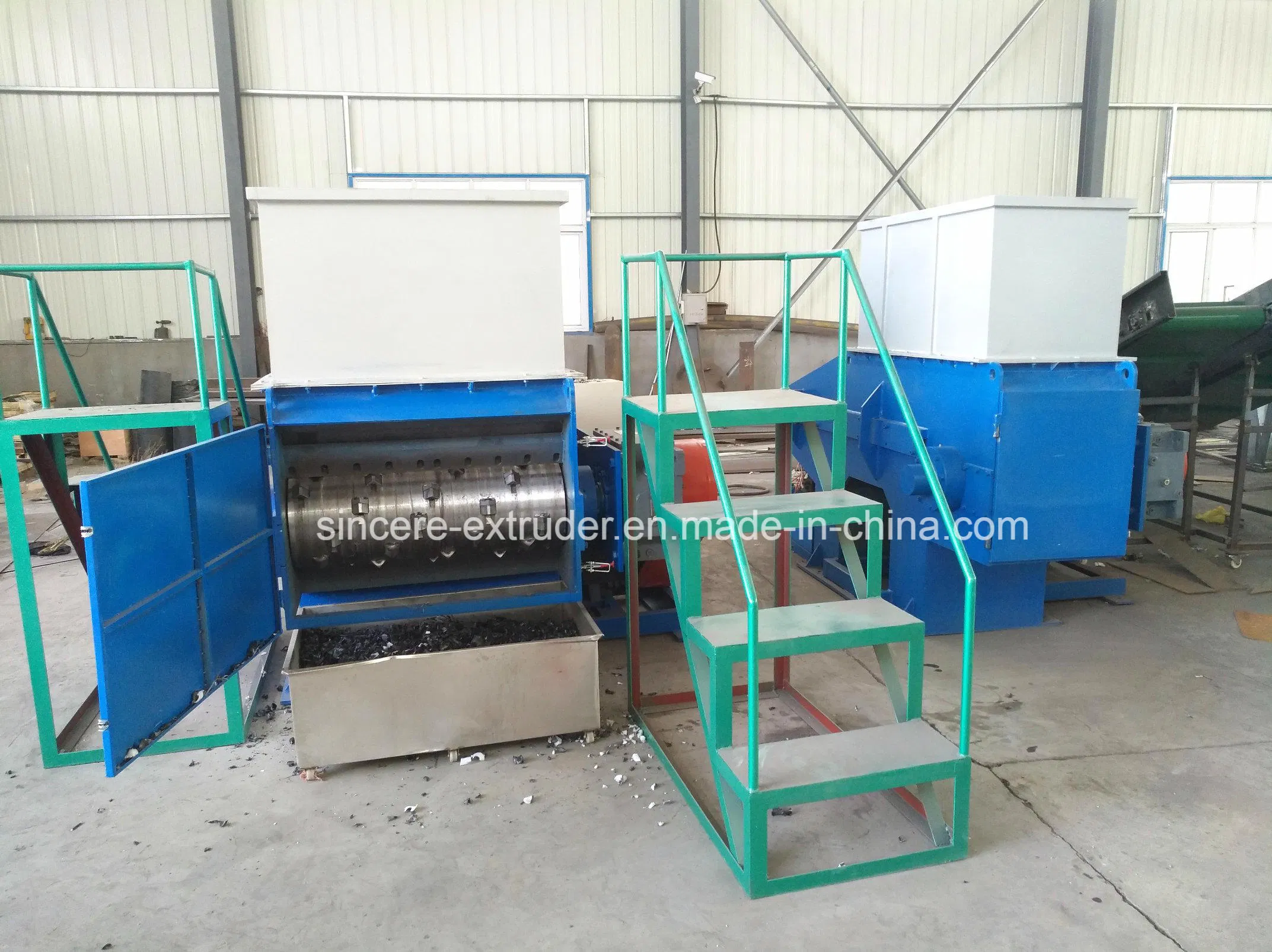

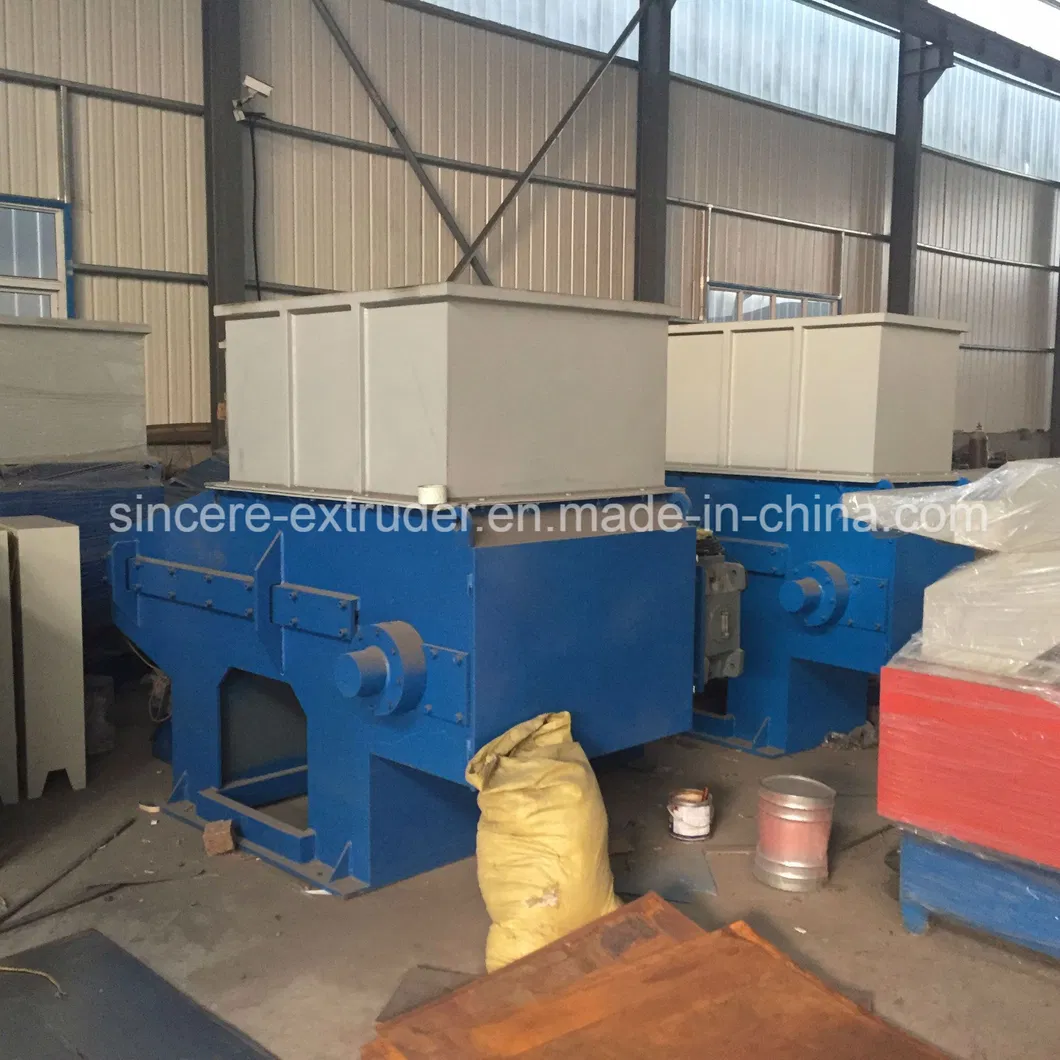

Plastic Shredder, single shaft shredder, double shaft shredder.
| Model | Cutter diameter(mm) | Crusher room | Capacity(kg|h) | Power(kw) | Overall dimension(mm)(mm) | Weight(kg) |
| 600 | 260 | 600*550 | 300-5000 | 15 | 1800*1300*1700 | 2850 |
| 800 | 300 | 800*600 | 500-800 | 37 | 2800*1800*2100 | 4200 |
| 1000 | 350 | 1000*700 | 800-1500 | 45 | 2800*2000*2100 | 6500 |
| 1200 | 400 | 1200*900 | 1500-2500 | 55 | 2800*2500*2100 | 7800 |
| 1400 | 450 | 1400*900 | 2500-4000 | 75 | 2800*2800*2100 | 9600 |
| 1600 | 500 | 1600*1000 | 4000-6000 | 90 | 3000*2800*2100 | 12500 |
