Automatic Scrap Tire/Metal/Wood/Plastic Shredding Machine for Recycling
Automatic Scrap Tire/Metal/Wood/Plastic Shredding Machine for RecyclingShredwell TS series tire shredding machine is designed with low speed, high torque technologies to shred passenger tires, car tires, truck, super single, farm implement and OTR tires into clean shreds or chips at a rate of 40 Ton......
Send Inquiry
Product Description
Automatic Scrap Tire/Metal/Wood/Plastic Shredding Machine for Recycling
Shredwell TS series tire shredding machine is designed with low speed, high torque technologies to shred passenger tires, car tires, truck, super single, farm implement and OTR tires into clean shreds or chips at a rate of 40 Tons per hour.
More Details
ShredwellTS series tire shredding machine is powered by Siemens motor and controlled by Siemens PLC unit enabling automatic reverse for overload protection and minimizing blades damages.
Our patented knife design operates at extremely close tolerances which produces the industry's cleanest cut with very little exposed wire, and with over 13 processing steps ensure the best performance and precision tolerance. The knives can be resharpened and reused which significantly increases lifespan and decreases costs.
Based on the needs of our customers, our shredding machine for tire(working with disc classifier) produce a 50-150mm rubber chip, which is used as a coal additive for industrial boilers. Many of these facilities are turning to TDF because it burns hotter and cleaner than coal and is more cost effective.
Specification
After-sale service
*Production process follow up, on-processing products' pictures and technical report are supplied regularly to make sure the contracted production schedule.
*Shredwell skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a Shredwell technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment, which make time for our customer to prepare the site and commence production in time.
Technical support
*Shredwell provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
FAQ for Tire Shredding Machine
1) Are you a factory or trade company?
We are professional recycling shredder factory with the modernized management and quality control system, experienced production team, advanced manufacturing and processing facility. Export proportion around 50%. .
2) How can I trust your company?
a. modernized management and quality control system, experienced production team, advanced manufacturing and processing facility.
b. famous brand component as our standard configuration, like Siemens Motor, Tongli or SEW reducer, Siemens PLC and Schneider component. All parts processing by CNC machining to warranty the precision.
b. Assessed by third party-national test centre. national patents for all equipment, also CE, ISO.
c. Welcome to inspect anytime. We are near to Shanghai airport.
d. About the machine, we do much better on:Wear plates, seals, structure design, pressure head.
3) How about the test running & installation?
Before the order, welcome you to come to testing all equipments in our factory, we have ready equipments all the time.
Before shipping out your equipments, we will invite you to come to test your equipments, when you are satisfied; we start to pack and delivery.
We will send our enginner team(At least one mechanical engineer and one electrical engineer) to your country to help you to install the equipment, and commission as well as training your workers.
4) Any warranty?
Under the proper usage, 1-3 year for whole equipment.
5) Is your price competitive?
Only good quality equipment we supply. Surely we will give you best factory price based on superior product and service.
Company Introduction

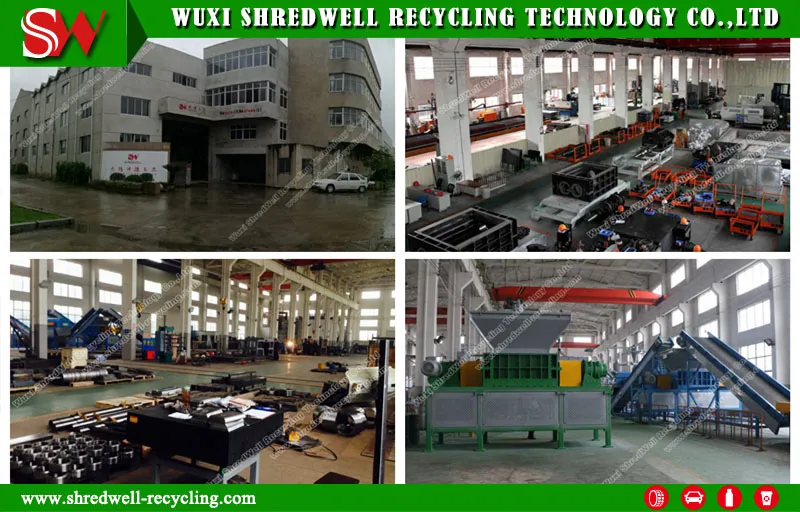

ShredWell is located in Wuxi, China, covering an area of more than thirty thousand square meters, and has the modernized technology center and all kinds of processing and testing equipment with more than 100 experienced staff over 30 professional engineers. Our main focus is to provide our customer cost-effective recycling system ranges from tire recycling system, car recycling system, e-waste recycling system, wood recycling system, solid waste recycling system.
Our experienced after-sales service team can ensure the most timely installation, commission and training work in customer workshop. Our mission is to provide our customers the best recycling solutions with our best quality service and technology!
Shredwell TS series tire shredding machine is designed with low speed, high torque technologies to shred passenger tires, car tires, truck, super single, farm implement and OTR tires into clean shreds or chips at a rate of 40 Tons per hour.
More Details
ShredwellTS series tire shredding machine is powered by Siemens motor and controlled by Siemens PLC unit enabling automatic reverse for overload protection and minimizing blades damages.
Our patented knife design operates at extremely close tolerances which produces the industry's cleanest cut with very little exposed wire, and with over 13 processing steps ensure the best performance and precision tolerance. The knives can be resharpened and reused which significantly increases lifespan and decreases costs.
Based on the needs of our customers, our shredding machine for tire(working with disc classifier) produce a 50-150mm rubber chip, which is used as a coal additive for industrial boilers. Many of these facilities are turning to TDF because it burns hotter and cleaner than coal and is more cost effective.
Specification
| Tire Shredding Machine | TS1800 | TS1600 | TS1300 | TS1200 |
| Motor | Siemens | Siemens | Siemens | Siemens |
| Power | 75kw*2/55kw*2 | 45kw*2 | 45kw*2/37kw*2 | 45kw*2/22kw*2 |
| Voltage | as per request | as per request | as per request | as per request |
| Cutting Chamber(L*W) | 1804*1410mm | 1504*1360mm | 1304*920mm | 1204*920mm |
| Blade Diameter | 750mm | 560mm | 450mm | 450mm |
| Equipment Dimension | 5870*2450*3890mm | 5260*2420*3890mm | 5120*2010*3100mm | 5010*1710*3100mm |
| Equipment weight | 25000kg | 22000kg | 17500kg | 15500kg |
| Hopper opening(L*W*H) | 2790*2450*1100mm | 2760*2410*1100mm | 2050*1650*1000mm | 1850*1650*900mm |
| Final product | 50-150mm | 50-150mm | 50-150mm | 50-150mm |
After-sale service
*Production process follow up, on-processing products' pictures and technical report are supplied regularly to make sure the contracted production schedule.
*Shredwell skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by a Shredwell technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment, which make time for our customer to prepare the site and commence production in time.
Technical support
*Shredwell provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
FAQ for Tire Shredding Machine
1) Are you a factory or trade company?
We are professional recycling shredder factory with the modernized management and quality control system, experienced production team, advanced manufacturing and processing facility. Export proportion around 50%. .
2) How can I trust your company?
a. modernized management and quality control system, experienced production team, advanced manufacturing and processing facility.
b. famous brand component as our standard configuration, like Siemens Motor, Tongli or SEW reducer, Siemens PLC and Schneider component. All parts processing by CNC machining to warranty the precision.
b. Assessed by third party-national test centre. national patents for all equipment, also CE, ISO.
c. Welcome to inspect anytime. We are near to Shanghai airport.
d. About the machine, we do much better on:Wear plates, seals, structure design, pressure head.
3) How about the test running & installation?
Before the order, welcome you to come to testing all equipments in our factory, we have ready equipments all the time.
Before shipping out your equipments, we will invite you to come to test your equipments, when you are satisfied; we start to pack and delivery.
We will send our enginner team(At least one mechanical engineer and one electrical engineer) to your country to help you to install the equipment, and commission as well as training your workers.
4) Any warranty?
Under the proper usage, 1-3 year for whole equipment.
5) Is your price competitive?
Only good quality equipment we supply. Surely we will give you best factory price based on superior product and service.
Company Introduction
ShredWell is located in Wuxi, China, covering an area of more than thirty thousand square meters, and has the modernized technology center and all kinds of processing and testing equipment with more than 100 experienced staff over 30 professional engineers. Our main focus is to provide our customer cost-effective recycling system ranges from tire recycling system, car recycling system, e-waste recycling system, wood recycling system, solid waste recycling system.
Our experienced after-sales service team can ensure the most timely installation, commission and training work in customer workshop. Our mission is to provide our customers the best recycling solutions with our best quality service and technology!
