Factory Direct Jumbo Plastic Bags LLDPE Film Washing Line

This Factory Direct Jumbo Plastic Bags LLDPE Film Washing Line is designed and manufactured by MOOGE TECH, which is widely used for waste plastic PE/LDPE/LLDPE film, PP woven bag, PP Jumbo bag, etc.
The waste dirty material go through crushing, friction washing, washing, dewatering, hot air drying process will turn to be clean flakes for pelletizing.
The line can be displayed "L" or "U" shape according to clients' workshop.
We can also customize the washing line components according to client's material and product requirement.

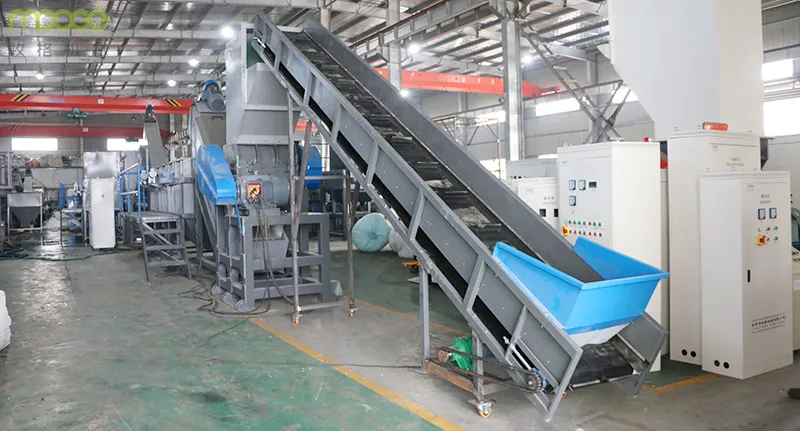

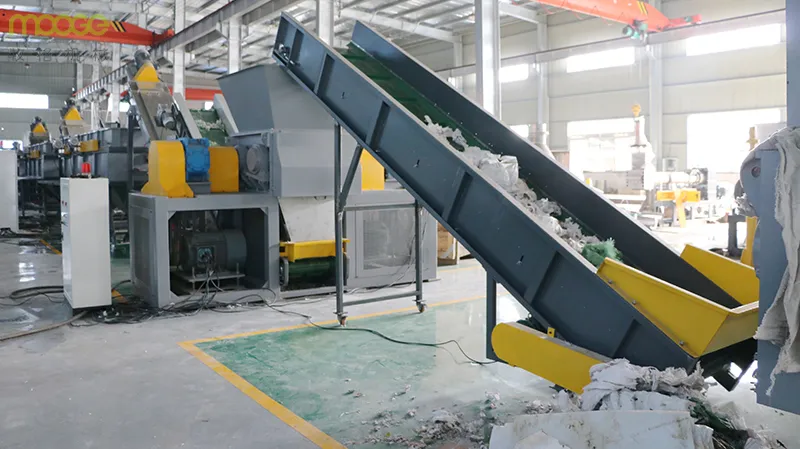

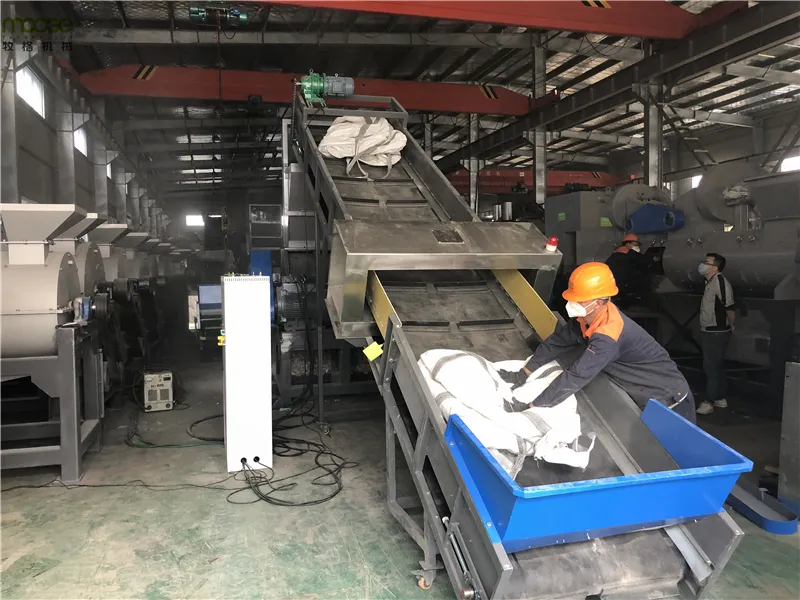

Conveyor Belt with Metal Detector



Function :Feeding material and detection the metal
Semi-Automatic model For ferrous and non-ferrous Its installed on the sorting conveyor Once there is metal passing it,

it will alarm and stop the sorting conveyor, after pick out the metal then start it again Precision for Ferrous >2.5mm

Precision fornon-Ferrous>3.2mm

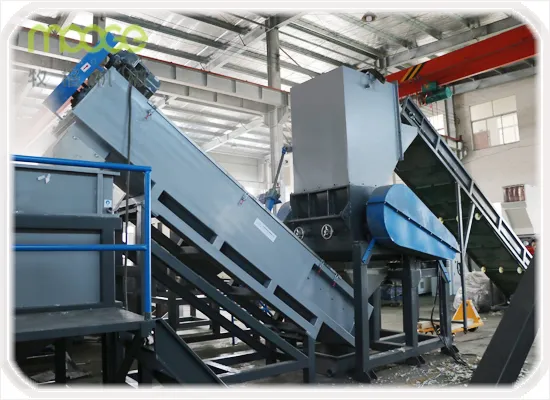

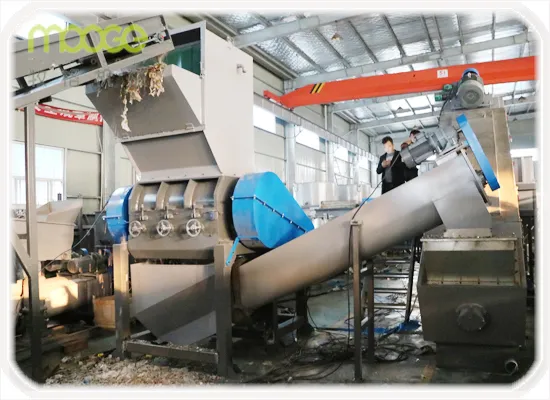

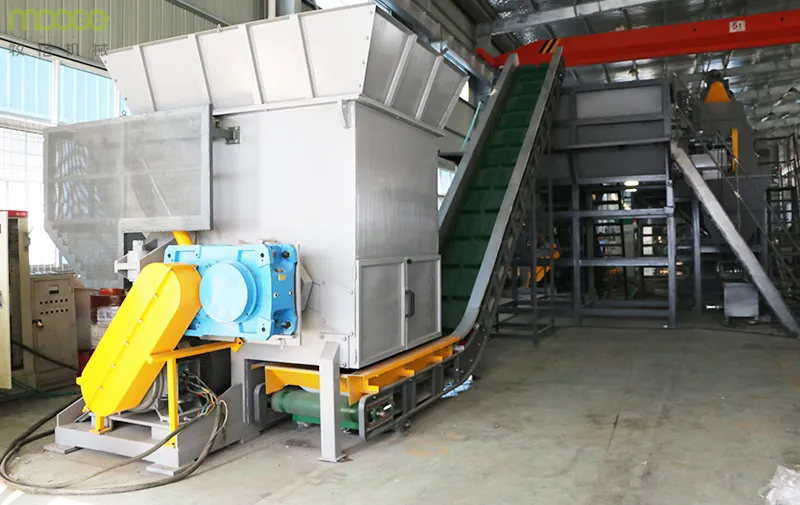

Plastic Crusher Machine

Function :crushing the material into small flakes
With water inlet do wet crushing
This series blades are more wider, it will save
the blades cost
Use the big roller bearing ensure its long time
Bearing house is outside of the crusher chamber so no dirty goes inside for longer use
Machine up chamber is higher and covered by belt no flakes pop out

Friction washing loader

Function: Friction washing with water to remove the dirty and loading up it
Up and down both mounted with bearing design
With water injection system to cleaning the screen
Bottom with water drain system
Washing off the dirty and loading the material out to next step processing

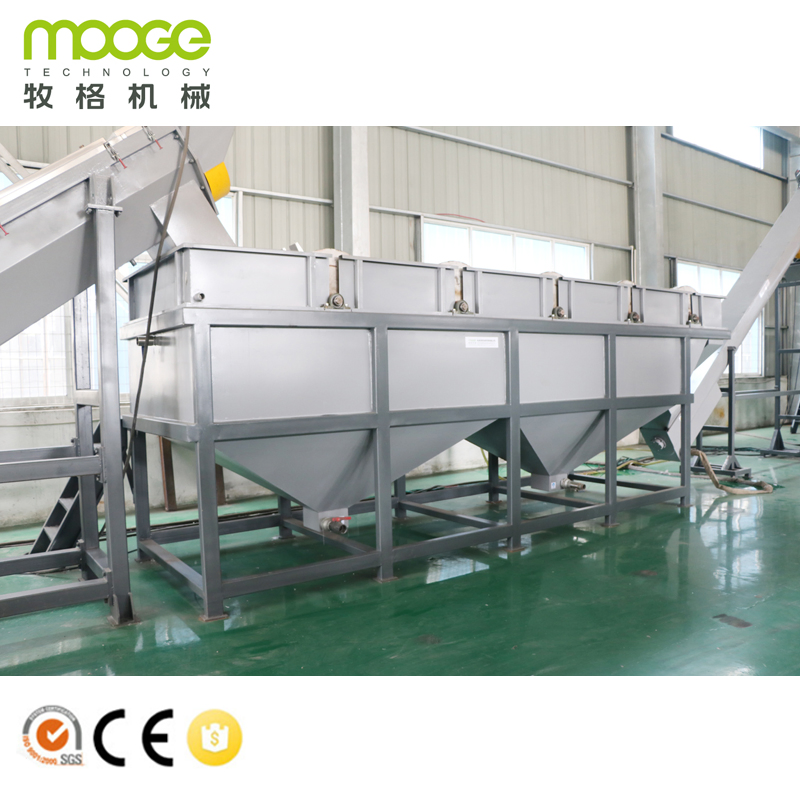

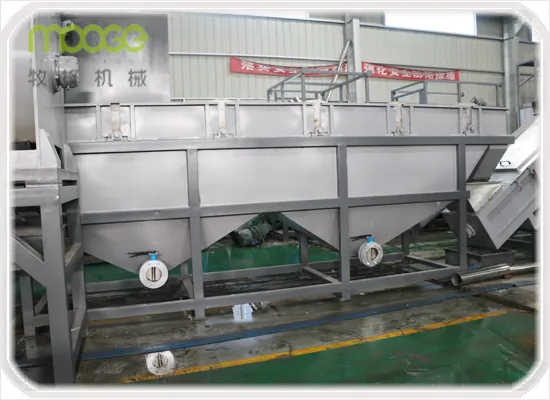

Floating washing tank

Function: Floating Washing separate the sand, soil and other dirty.
Roller Speed adjust by inverter
The roller is specially made can have more washing for lakes but less water take out
Bottom with conical design easy and better drain out the dirty and maintenance
With platform one set on the side of the tank

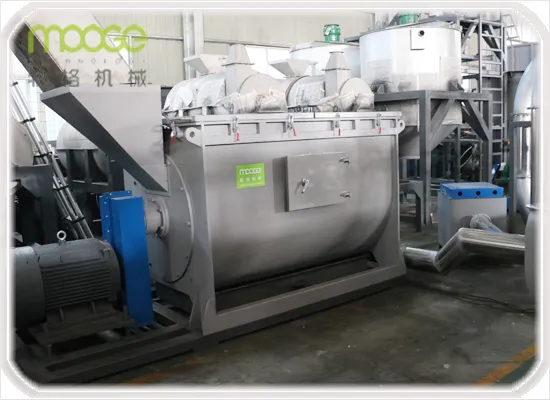

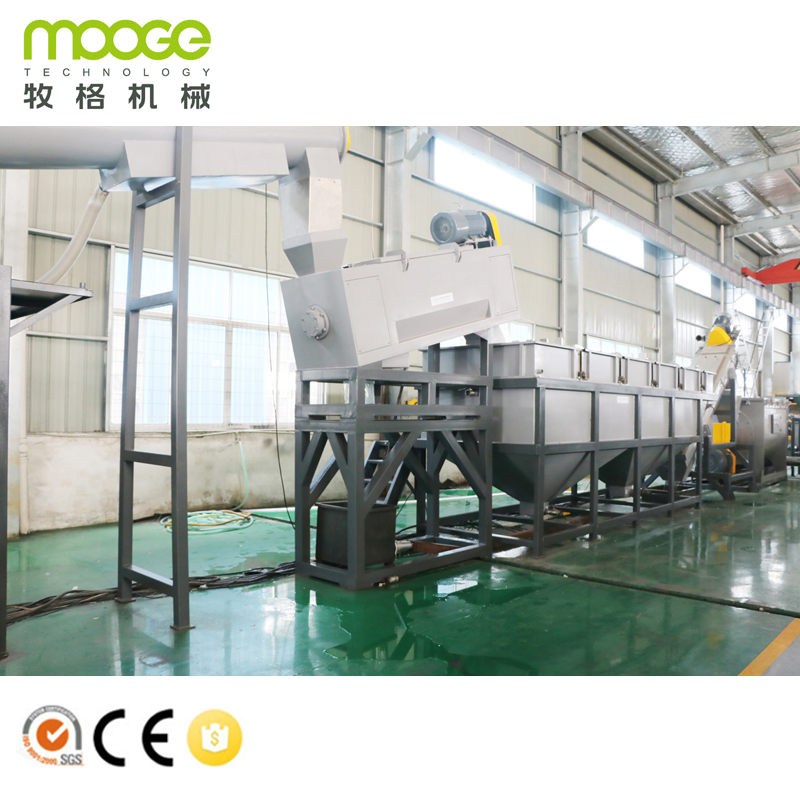

High speed dewater machine

Function: take out dirty and remover water
With the roller bearing and fixed outside of rotor for long use life Bearing is "NSK" Brand Japan
With water to washing the screen
Clean the screen with a rotating brush
Bottom with dirty water drain out
With water to cooling the bearing house
The chamber is easy to opening to maintenance
With water spray system to clean the mesh

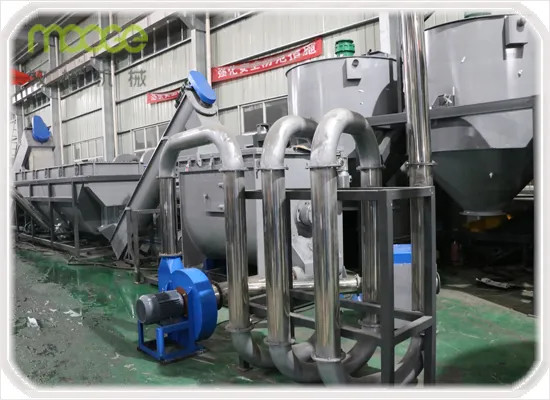

Hot air dryer system

Function:drying the material
heating by electricity box

Drying pipe: 1 set
Heating power box: 1 set
Heating power: 48KW
Drying pipe diameter: 219mm
Drying pipe length: 15m
Blower power: 7.5KW

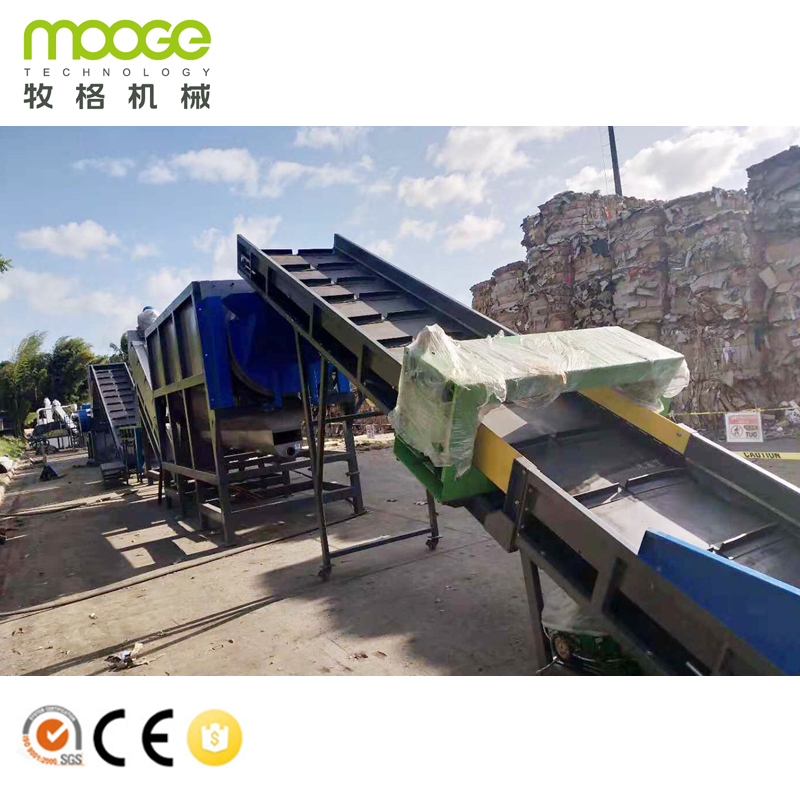

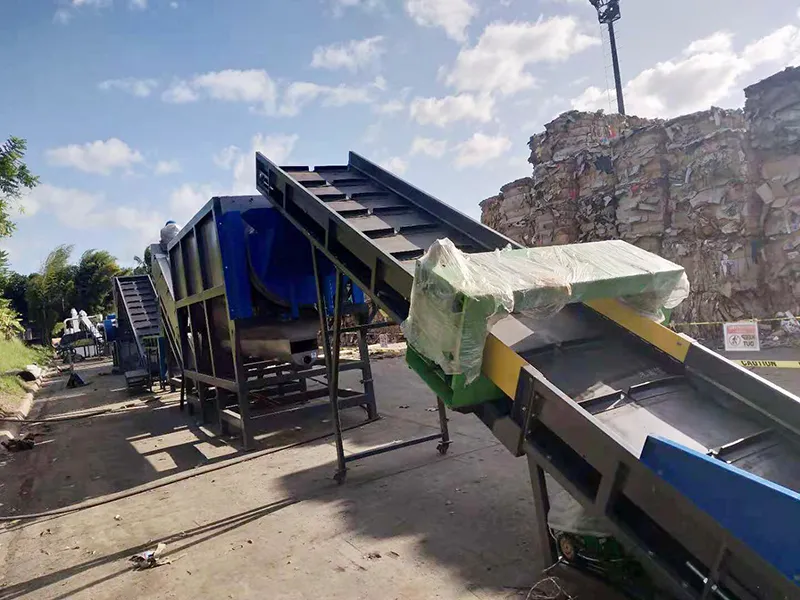

MT-300 PE film recycling line in Angola

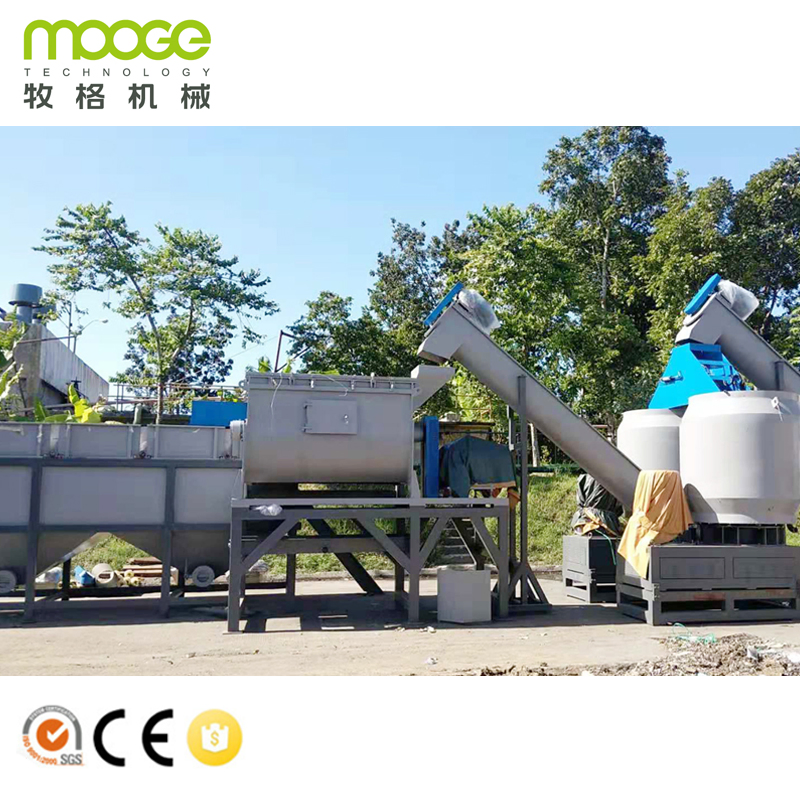

MT-500 plastic PE film washing machine in Myanmar
