Product Description

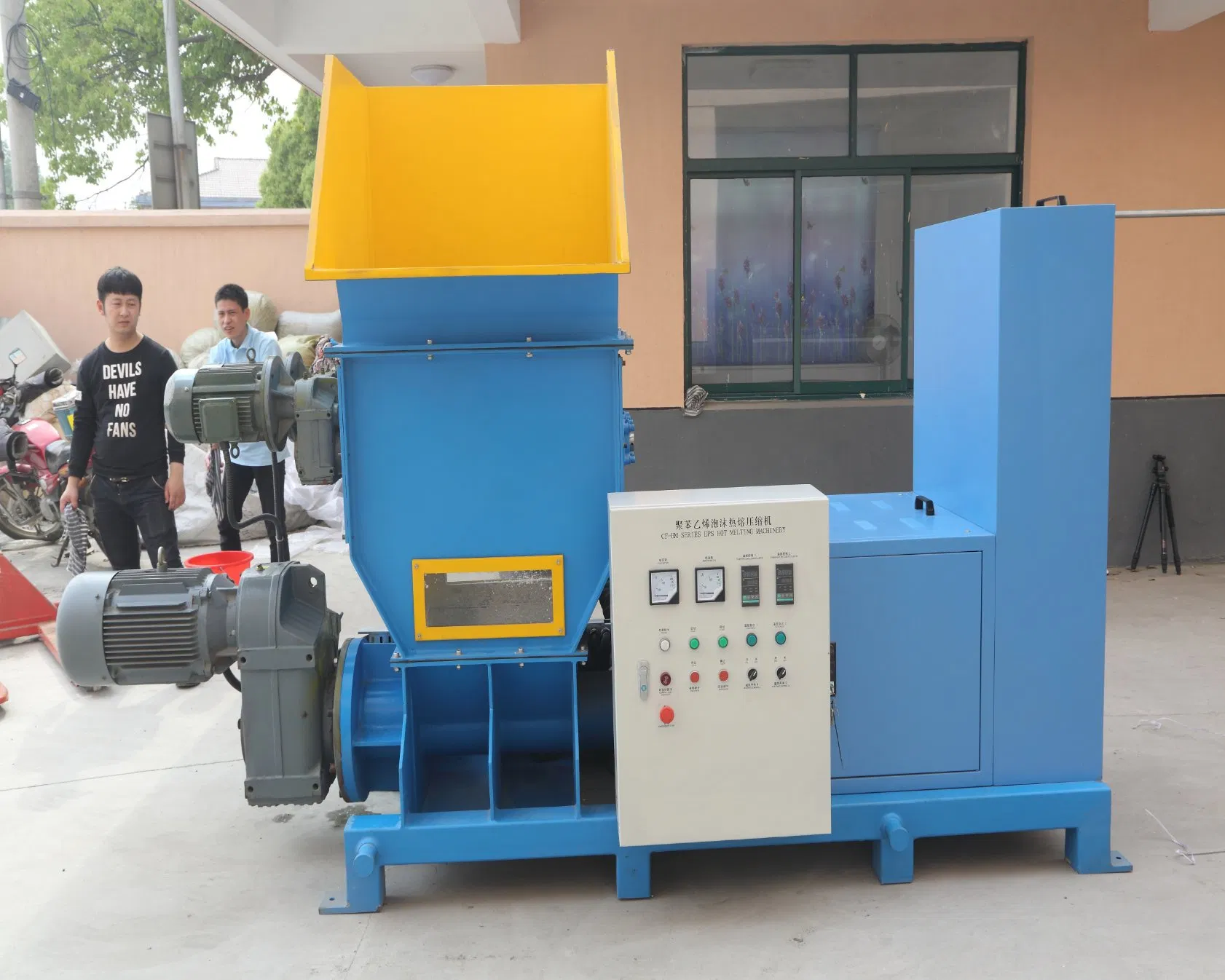

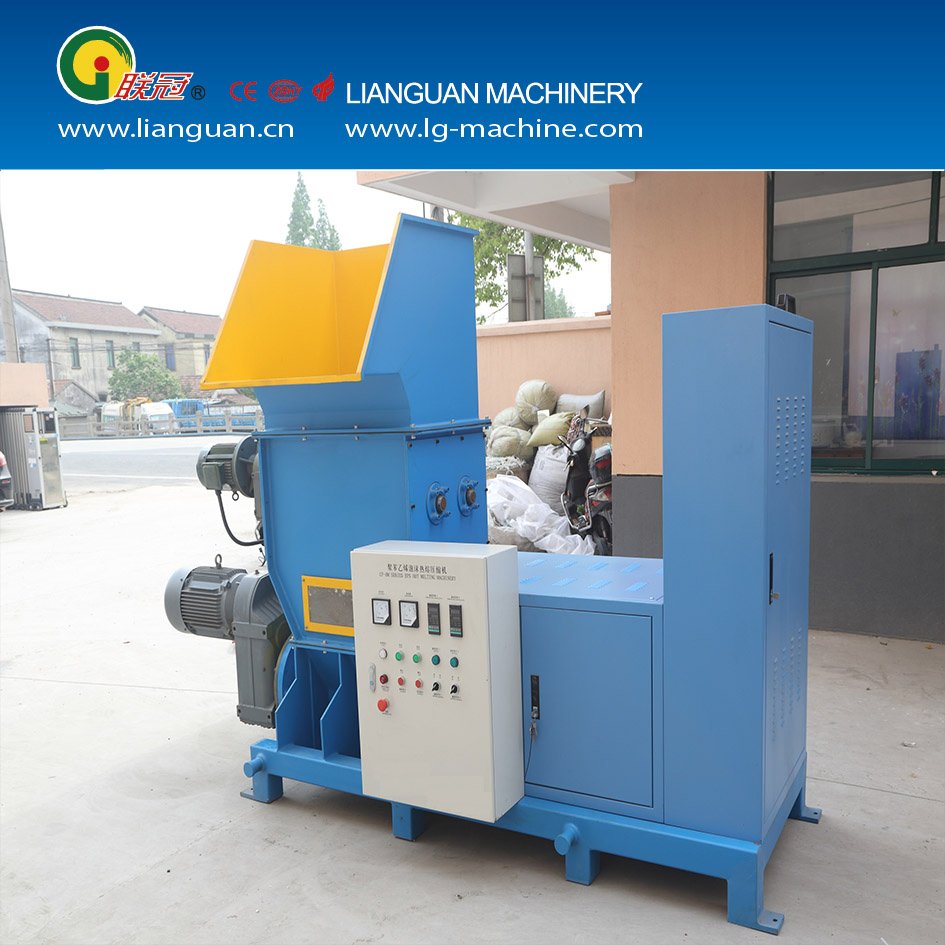

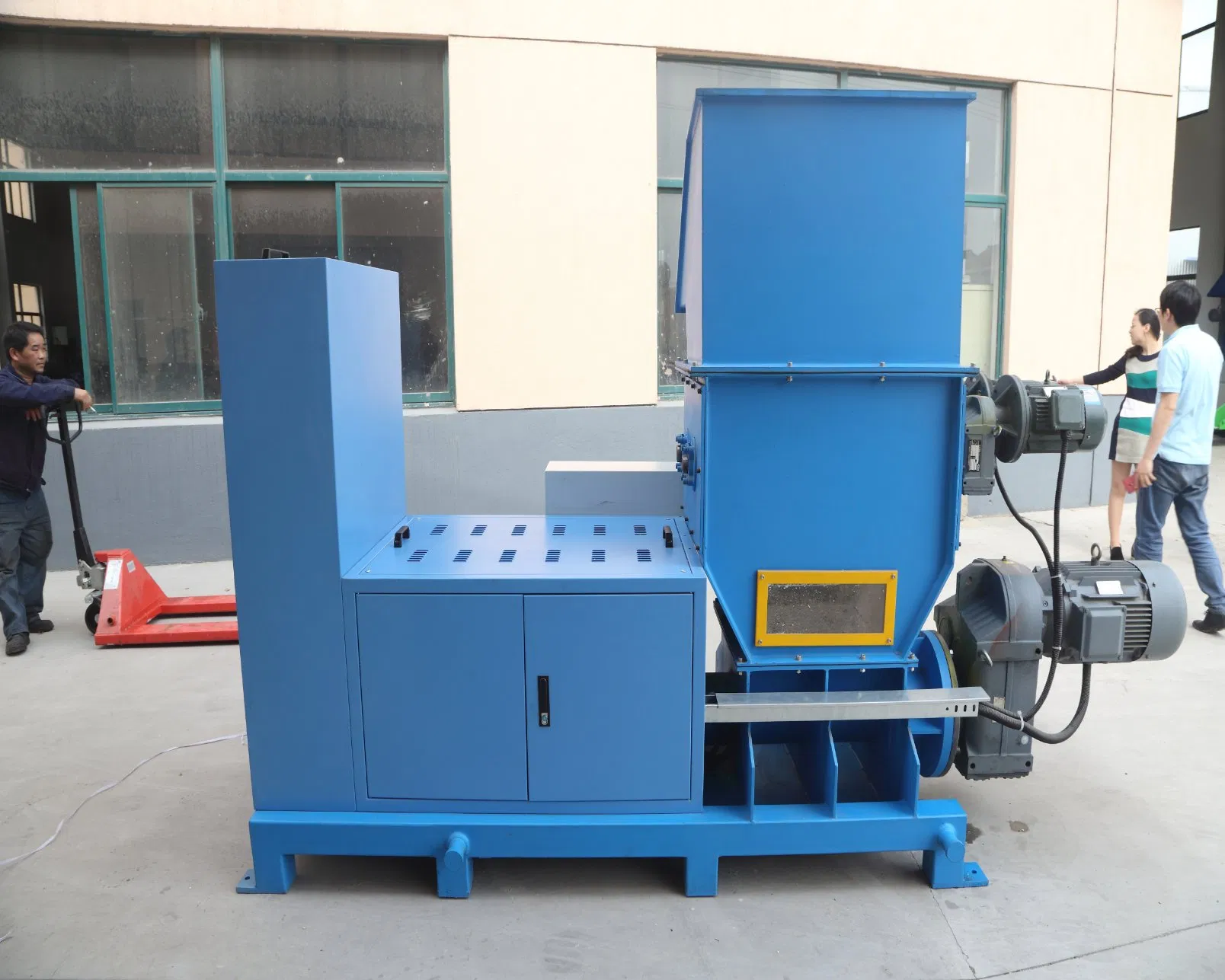

EPS/EPP/EPE hot melting machine

Heat melt foam densifiers are a series of machines that crush the compact loose foam products to make them dense blocks. These are hand-fed machines that process the foam in house, through shredding. They add heat to densify and extrude the foam, resulting in densified purged logs. You can use advanced hot melt foam densifier machines at LIANGUAN Recycling to densify expanded polystyrene foam or EPS. Besides, these are equally helpful in recycling expanded polyethylene(EPE) and expanded polypropylene(EPP) foams.
The EPS foam hot melt densifier is capable of processing 20kgs to 300 KG of loose foam per hour. This capacity depends on the foam type, density and the type of foam densifier machine you use for processing. The volume to reduction ratio for all the Heat-melt Foam Densifiers is near about 50 to 1. We provide different variations of these foam densifiers.
Based on standard industrial design, we ensure sellable recyclable product with the help of advanced Heat-melt Foam Densifiers. All of them adhere to the environmental and health safety norms and we put them for sale on after carrying out rigorous air quality testing.
We are the one-stop destination for complete waste recycling solutions. Furthermore, our industry best hot melt foam densifiers are next to none owing to the durability, superior mechanism and reduced cost recycling and waste management that these machines ensure.

I. the use of Hot melting machine for waste plastic: in recent years, waste plastics recycling, foam plastics in the packaging industry wide, large volume, difficult to transport, led to the rapid development of waste plastics recycling machinery, with the continuous adoption of new technologies, Hot melting machine for recycling EPS and production efficiency has been generally improved rapidly. The utility model has the advantages of high efficiency, space saving, easy transportation to complete products, environmental protection, pollution-free and smoke-free operation to avoid secondary pollution. Complete waste resource regeneration, create benefits.

II. Working Principle
The use of two axis crushing knives in EPS HOT MELTING MACHINERY can effectively break the foamed polystyrene material into smaller pieces and enter the screen. Material can not be further broken into the screen mesh, fall into the screen mesh, and then enter the main machine through screw high-speed rotation, the crushed material will be conveyed to the conical cylinder and the circular cylinder, heated by mica heater, and then the melted material will continue to be conveyed to the moulding square die. Material begins to cool down, and the square object is extruded from the die. According to the required length, it will be automatically cut off by the cutting machine and finished.

Technical Parameters:

Model	HM100	HM200	HM400
Feeding size	650*400mm	900*600mm	1000*900mm
Screw diameter	φ138 mm	φ190-220 mm	φ190-220 mm
Screw speed	165 r/min	110 r/min	150 r/min
Heating power	3kw	10kw	10kw
Main Motor power	7.5kw	15kw	22kw
Crusher motor power	2.2kw	2.2kw*2sets	2.2kw*4sets
Crusher blades quantity	8sets	8+9sets	10+11+10+11sets
Machine weight	600 Kg	1500kg	2200kg
