Low Price 500- 3500kg /H Pet Bottle Flakes Recycling Washing Machine
Product DescriptionPET Bottle Recycling Line :1. High automation level, try best to reduce your cost on labor (especially for three shifts) and ensure high processing capacity: 500-3500kg/hr2. Friendly control system (PLC integrated & separated control on each machine) and Touch screen panel, ea......
Send Inquiry
Product Description
Product Description
PET Bottle Recycling Line :
1. High automation level, try best to reduce your cost on labor (especially for three shifts) and ensure high processing capacity: 500-3500kg/hr
2. Friendly control system (PLC integrated & separated control on each machine) and Touch screen panel, easy for operation, monitor and emergency stop.
3. All parts contacting with plastic material and water are made of high-quality 304 stainless steel; Ensure no second pollution to flakes.
4. Ideal impurity removal effect.
5.Motor:Siemens, WEG
Gear reducer: SEW, FALK
Bearing: SKF, FAG, NSK
PLC: Siemens, Schneider, Beckhoff
Inverter: ABB, Schneider, Siemens
Pressure sensor: Dynisco, Gefran
Low voltage component: Siemens, Schneider, Omron, LS
Basic Data of PET Bottles Recycling Line:
Main Technical Parameter for your reference:
Process Flowchart:
Feeding Conveyor---Plastic label remover----Plastic Crusher machine--- Flakes washing system(such as hot washer, friction washer, floating washer, high speed friction washer, horizontal spray washer etc.)---Dewatering machinery ---Hot air drying system --- Packing system
Production Line List for your reference:
About Jiangsu ACEMIEN Machinery:
Jiangsu ACEMIEN Machinery Co., Ltd is specialized on plastic extrusion and recycling machinery manufacturing.
We have been producing and selling for over 5years. Our equipment is exported to Asia, Africa, etc,
We have top-ranking Research and Development technology system and rich experienced technician team.
Our vision is to offer you the best and the most appropriate plastic extrusion and recycling solution, to offer you the most reliable technically and commercial service support.
Turnkey project service:
1. we will provide all the machines for the complete production according to customer's requirements.
2. we will provide complete service for factory layout and other information to help customer to build the factory.
3. we can also provide the raw material to the customer if you need.
4. we will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except one year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trustable supplier for turnkey projects. Let us do win-win business together.
PET Bottle Recycling Line :
1. High automation level, try best to reduce your cost on labor (especially for three shifts) and ensure high processing capacity: 500-3500kg/hr
2. Friendly control system (PLC integrated & separated control on each machine) and Touch screen panel, easy for operation, monitor and emergency stop.
3. All parts contacting with plastic material and water are made of high-quality 304 stainless steel; Ensure no second pollution to flakes.
4. Ideal impurity removal effect.
5.Motor:Siemens, WEG
Gear reducer: SEW, FALK
Bearing: SKF, FAG, NSK
PLC: Siemens, Schneider, Beckhoff
Inverter: ABB, Schneider, Siemens
Pressure sensor: Dynisco, Gefran
Low voltage component: Siemens, Schneider, Omron, LS
Basic Data of PET Bottles Recycling Line:
| Capacity | Power Installed | Required Area | Manpower |
| 1000kg/h | 500kw | 750m² | 5 |
| 2000kg/h | 700kw | 900 m² | 6 |
| 3000kg/h | 900kw | 1000 m² | 7 |
Main Technical Parameter for your reference:
| Specifications | 300KG/hour | 500KG/hour |
| Belt conveyor | power: 1.5 KW | power: 1.5 KW |
Strong crusher | power: 37KW The sword: 6 Fixed knife: 4 | power: 55KW The sword: 8 Fixed knife: 4 |
| High-speed friction cleaner | power: 5.5 KW | power: 7.5 KW |
| Precipitation rinse pool | needle wheel motor 3KW: line | Dial the line pin wheel motor 3KWx2 |
| Spiral feeder | power: 1.5 KW | power: 2.2 KW |
| steam | power: 7.5 KW | power: 11KW |
| High-speed friction cleaner | power: 5.5 KW | power: 7.5 KW |
| Precipitation rinse pool | needle wheel motor 3KW: line | Dial the line pin wheel motor 3KWx2 |
| Centrifugal dehydrator | power: 30KW | power: 45KW |
| Pipelines dry drying system | power: 30KW | power: 45KW |
| Storage bin | Cubage: 1M3 | Cubage: 1M3 |

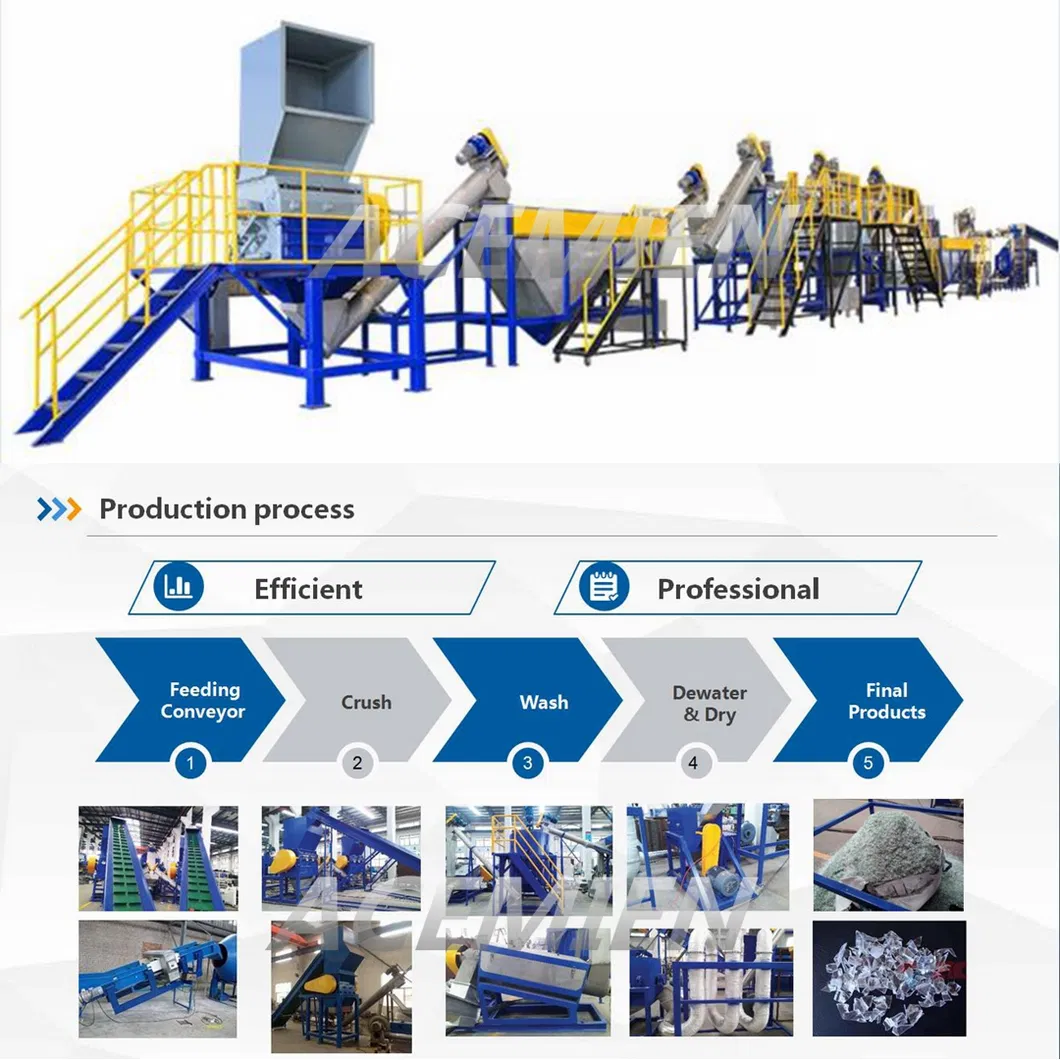

Process Flowchart:
Feeding Conveyor---Plastic label remover----Plastic Crusher machine--- Flakes washing system(such as hot washer, friction washer, floating washer, high speed friction washer, horizontal spray washer etc.)---Dewatering machinery ---Hot air drying system --- Packing system
Production Line List for your reference:
| Item | Components | Qty | |
| 1 | Belt conveyor | 1 set | Equipped with anti-slide device on the belt surface Auto remove metal and alloy steel, aluminum and so on |
| 2 | Label Remover | 1 set | |
| 3 | Manual sorting machine | 1 set | |
| 4 | Belt conveyor | 1 set | 1.Height of conveyor can be adjusted. 2.Equipped with wheels. |
| 5 | Crusher | 1 set | 1. hopper of crusher open ways : by motor drive: 1.5kw 2.Material of blade:SKD-11 |
| 6 | Screw feeder | 1 set | |
| 7 | Float washing tank | 1 set | 1.Washing roller motor: 2.2kw×4+3KW 2.Qty of pushing roller : 5set |
| 8 | Hot washing machine | 1 set | Steam heating or electric heating(heat power:60kw) |
| 9 | Screw feeder | 1 set | |
| 10 | Hot washing machine | 1 set | |
| 11 | Screw feeder | 1 set | 1. Parts contact with material are made of stainless steel |
| 12 | High speed friction washer | 1 set | 1. Rotary speed of screw: 1220rpm |
| 13 | Screw feeder | 1 set | |
| 14 | Float washing tank | 1 set | |
| 15 | Float washing tank | 1 set | |
| 16 | Vertical dewatering machine | 1 set | The dewatering rate: more than 93% |
| 17 | Heating pipe system(with blower) | 1 set | Pipeline length :18 m Rate of including water : less than 3 % |
| 18 | Zig Zag Label separator | 1 set | |
| 19 | Blower and storage silo | 1 set | Usage : for temporary storage for flakes. Made of SUS304. |
| 20 | Electrical control panel | 1 set | |
| Total | 20 sets | ||
About Jiangsu ACEMIEN Machinery:
Jiangsu ACEMIEN Machinery Co., Ltd is specialized on plastic extrusion and recycling machinery manufacturing.
We have been producing and selling for over 5years. Our equipment is exported to Asia, Africa, etc,
We have top-ranking Research and Development technology system and rich experienced technician team.
Our vision is to offer you the best and the most appropriate plastic extrusion and recycling solution, to offer you the most reliable technically and commercial service support.
Turnkey project service:
1. we will provide all the machines for the complete production according to customer's requirements.
2. we will provide complete service for factory layout and other information to help customer to build the factory.
3. we can also provide the raw material to the customer if you need.
4. we will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except one year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trustable supplier for turnkey projects. Let us do win-win business together.
