China PE/PP Plastic Film Squeezer Machine

Product Description

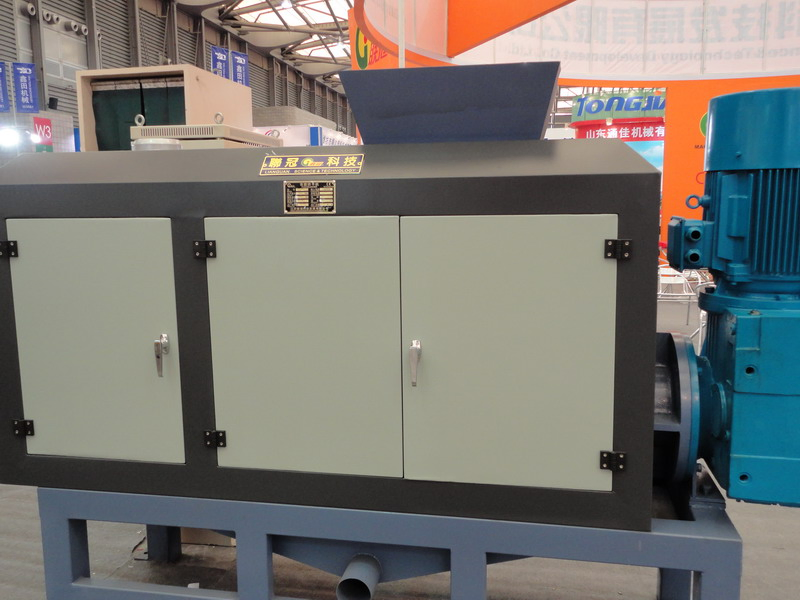

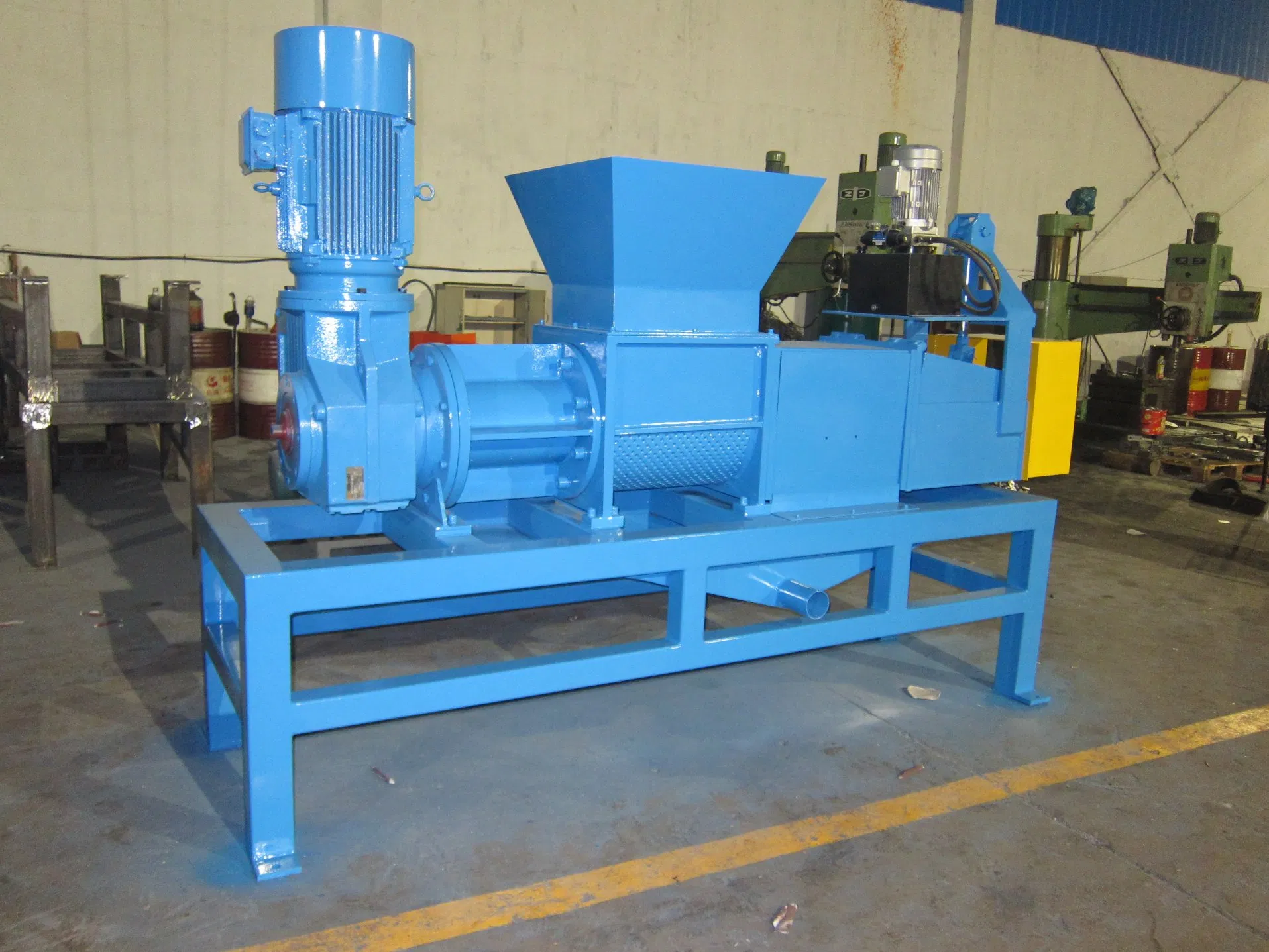

PE/PP Plastic Film Squeezer Machine

Product Description
Features:

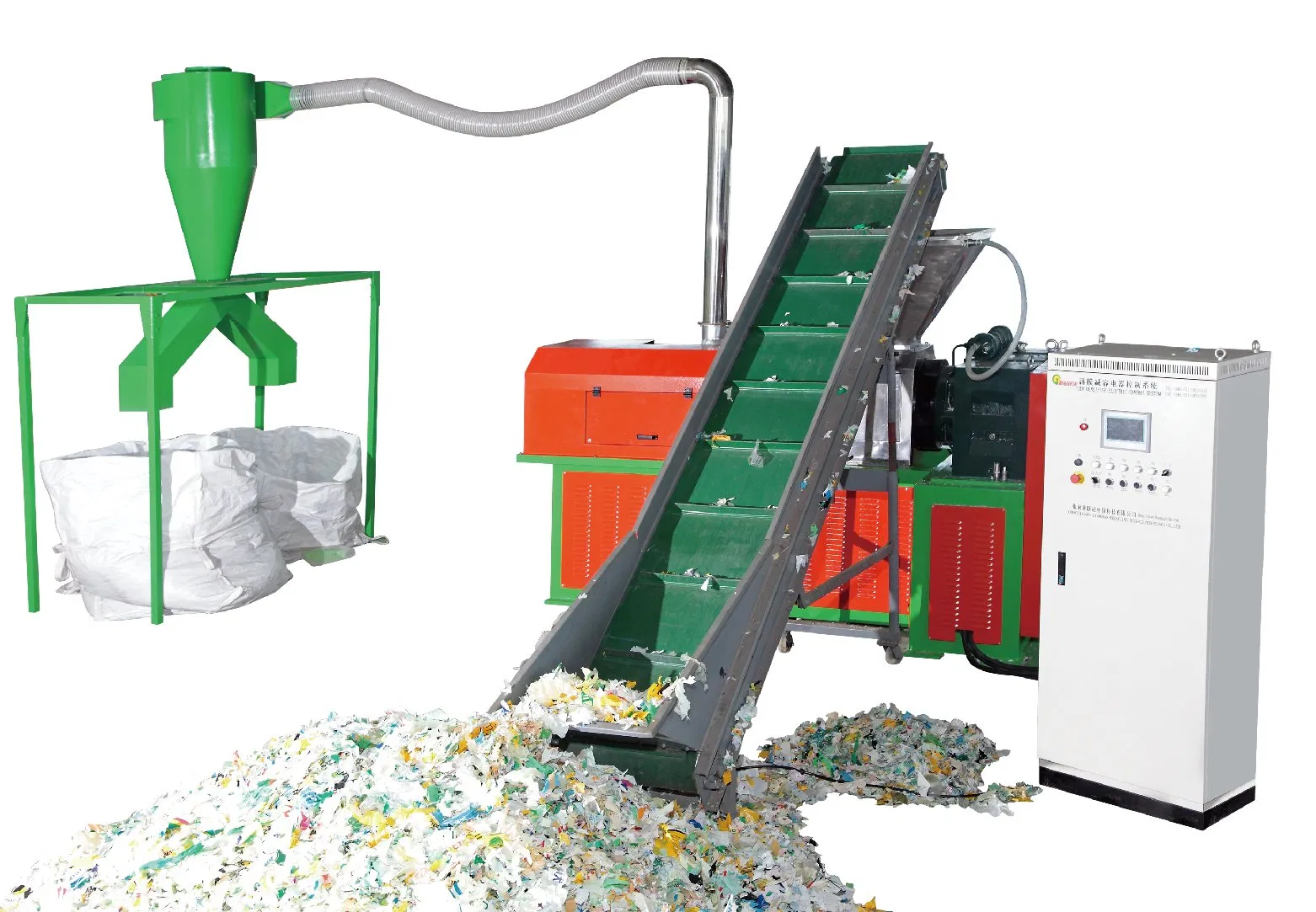

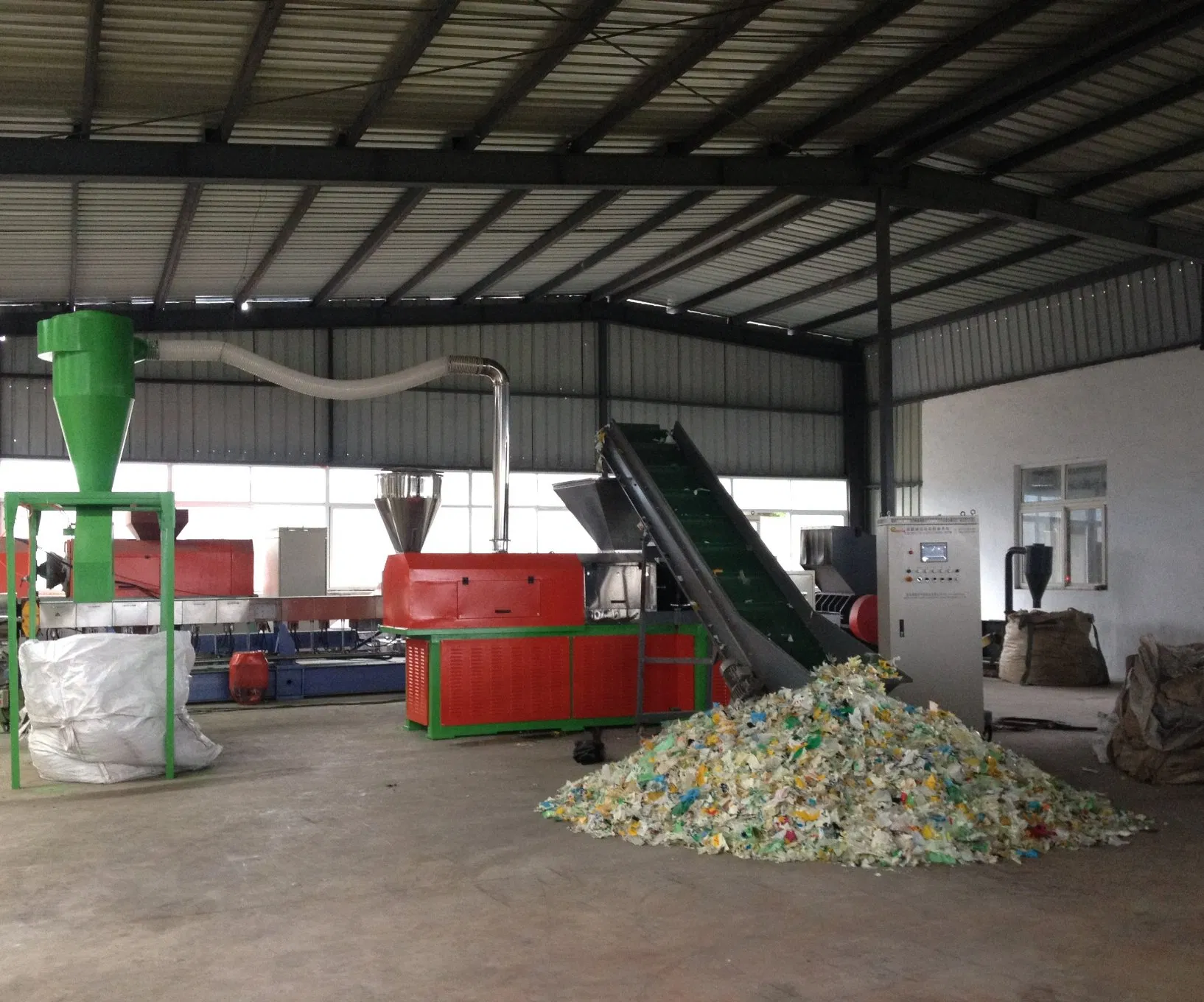

1. This machine is our new designed machine, made by the advanced Italian techniques, specially screw pressing dewatering design;It is equipped with a electric control cabinet, feeder mouth is easy to control the drying effect;This machine is especially for plastic film, plastic bags, woven bags, Jumbo bags. Solve the drying problem in the past. Instead of the dewatering machine, hot blower in the recycling line.Easy to operate, drying effect can reach to 92%-93%, if add one step hot air pipe drying system, final product dry could be more than 95%.

Main Technical Parameter:
Motor power           : 18.5kw
Max capacity           : 500-700kg/h
Screw diameter         :300mm
Hydraulic station power : 1.5kw
Remark:The machine has less motor, high working efficiency, which could save your power cost.

Model	500	1000
DIMENSION	2450X800X1800MM	2450X800X1800MM
INLET SIZE	700X670MM	700X670MM
MOTOR POWER	18.5KW	22KW
ROTATED SPEED	42R/MIN	42R/MIN
CAPACITY	500-700KG/H	800-1000KG/H
DRAINAGE METHOD	DRAIN AT THE BOTTOM
MATERIAL OUTLET	FREE FALLING
HYDRAULIC STATION MOTOR	1.5-2.2KW
