Plastic Densifier for PP PE LDPE LLDPE Pet Film (RTA)
Plastic Densifier for PP PE LDPE LLDPE PET Film (RTA)Features of Plastic Agglomerator densifier:1. The Plastic Film Agglomerator densifier is used to granulate the thermal plastic LDPE/LLDPE 98/2 films, PET fibers, the thickness is less than 2 mm into small granules & pellets directly. The soft......
Send Inquiry
Product Description
Plastic Densifier for PP PE LDPE LLDPE PET Film (RTA)
Features of Plastic Agglomerator densifier:
1. The Plastic Film Agglomerator densifier is used to granulate the thermal plastic LDPE/LLDPE 98/2 films, PET fibers, the thickness is less than 2 mm into small granules & pellets directly. The soft PVC, LDPE, HDPE, PS, PP, foam PS, PET fibers and other thermoplastics are suitable for it.
2. When the waste plastic is supplied into the chamber of this machine, it will be cut into smaller chips due to the crushing function of the rotating knife and fixed knife. During the crushing processing, the material that soaked up lots creats heat from the fast moving frictional movement of material being crushing and the wall of container will be going to become semi-plasticizing shape. The particles will stick with each other due to the function of plasticization.
Models/technicals:
| Item | Technical data | |||||
| GHX-150 | GHX-200 | GHX-300 | GHX-500 | GHX-600 | GHX-800 | |
| Volume (L) | 150 | 200 | 300 | 500 | 600 | 800 |
| Effective volume (L) | 100 | 150 | 225 | 375 | 450 | 600 |
| Main shaft speed(r/min) | 1050 | 1000 | 950 | 750 | 750 | 750 |
| Output (kg/h) | 100 | 150 | 200 | 300 | 400 | 550 |
| Motor (kw) | 37 | 45 | 55 (75) | 90 | 110 | 110 (132) |
| Weight (kg) | 1000 | 1200 | 1800 | 2500 | 2700 | 3000 |
| Dimension (m) | 1.7*0.75*1.5 | 1.7*0.85*1.5 | 2*0.85*1.6 | 2.3*0.95*1.7 | 2.3*1.1*1.75 | 2.5*1.25*1.8 |
| Rotate blade quantity | 2 | 2 | 2 | 4 | 4 | 4 |
| Fixed blade quantity | 6 | 6 | 8 | 8 | 8 | 8 |
| Pot material | Stainless steel | |||||
| Blade material | 9CrSi | |||||
| Discharge method | Automatic / Manual | |||||
(Please note:we accept customized solution according to your raw material and capacity demand)

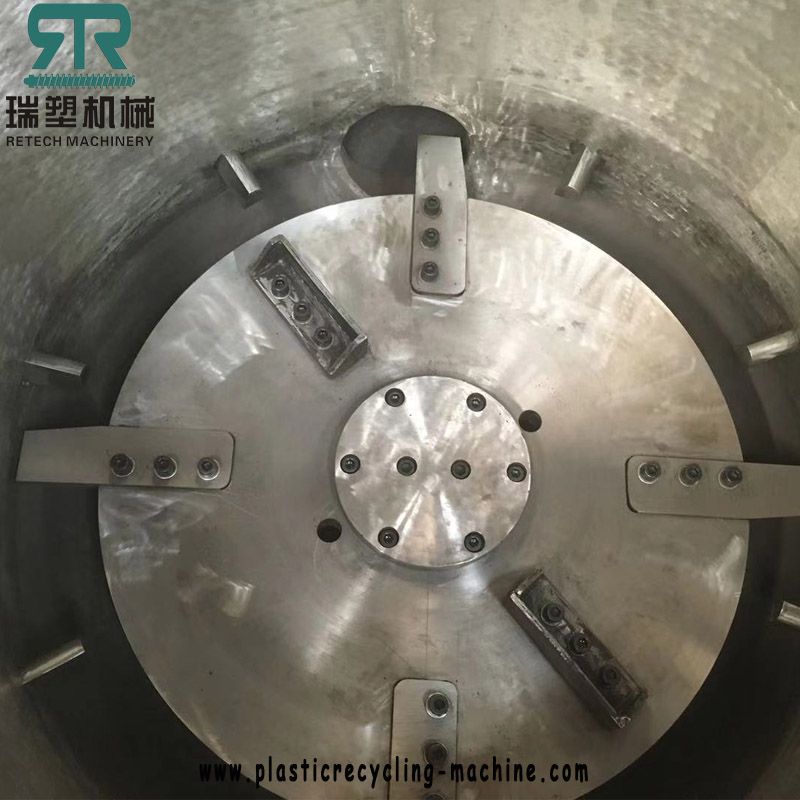

(The blades inside of chamber)

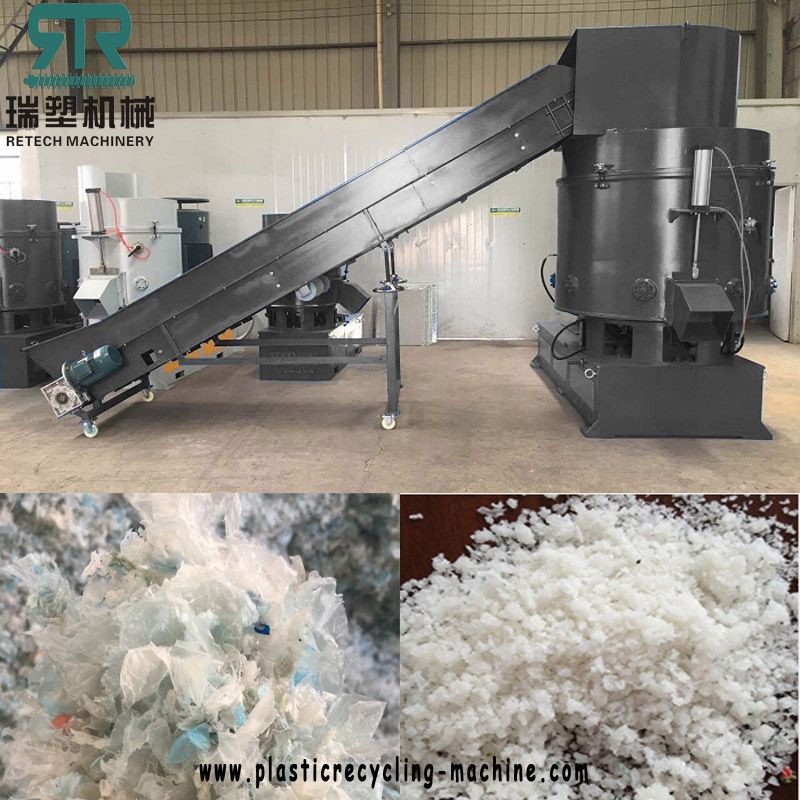

Plastic after agglomerated
Contact us:
RETECH is a professional machine manufacturer dedicated to designing and developing the high technology plastic machines with more than 15 years' experience.
We mainly supply:
Plastic PP/PE/PET/HDPE film&bottles washing recycling machines
Plastic PP/PE/PET/HDPE film&flakes pelletizing machines
