Plastic Offcut HDPE LDPE LLDPE Bag Film Compactor Pelletizing Recycling Line/Plant
Plastic Offcut HDPE LDPE LLDPE Bag Film Compactor Pelletizing Recycling Line/PlantSingle-stage/Double-stage PP PE film Compactor-granulating line(Granulator with agglomerator)Applications of Plastic Film Compactor Pelletizing Recycling Line/Plant:PP PE film/bagsBOPP filmsLDPE LLDPE HDPE offcut films......
Send Inquiry
Product Description

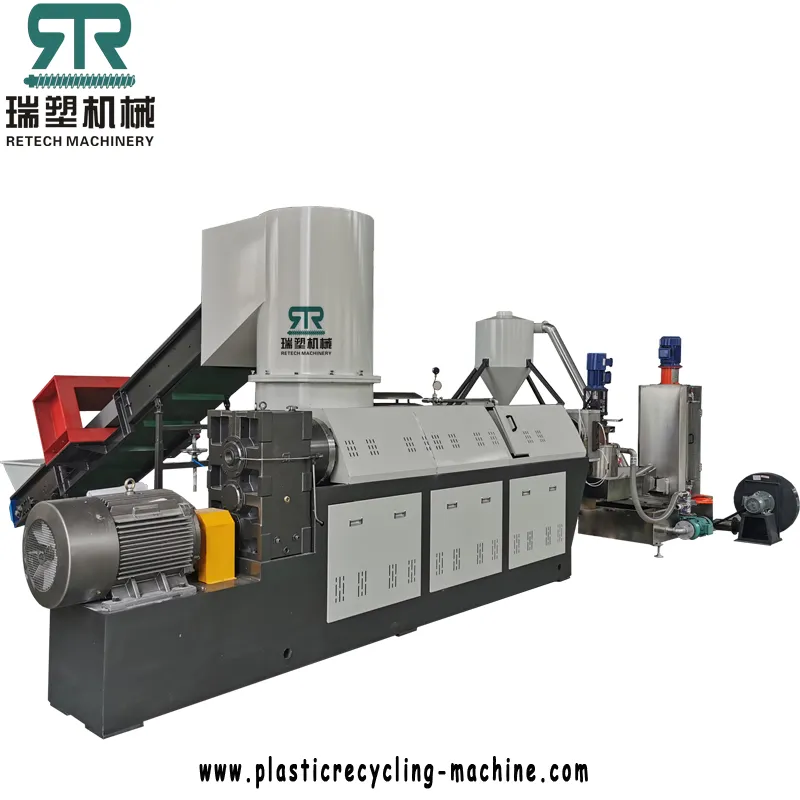

Plastic Offcut HDPE LDPE LLDPE Bag Film Compactor Pelletizing Recycling Line/Plant
Single-stage/Double-stage PP PE film Compactor-granulating line
(Granulator with agglomerator)
Applications of Plastic Film Compactor Pelletizing Recycling Line/Plant:
PP PE film/bags
BOPP films
LDPE LLDPE HDPE offcut films
ABS XPS PS EPS foam
PP Fabrics/Fiber/Raffia/Woven bag
Note: The different material may select different cutting way!

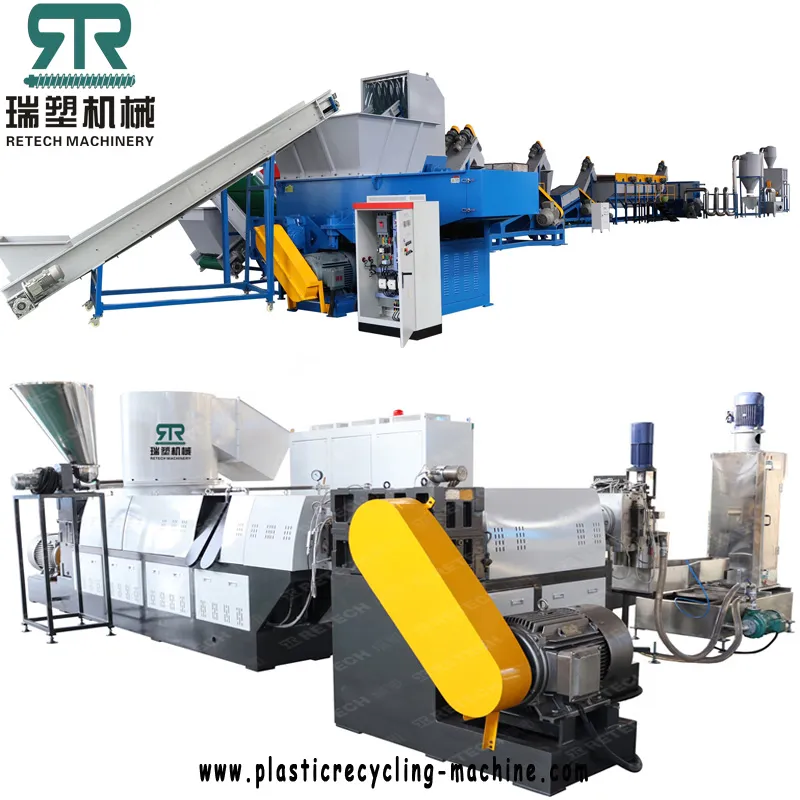

The main working steps:

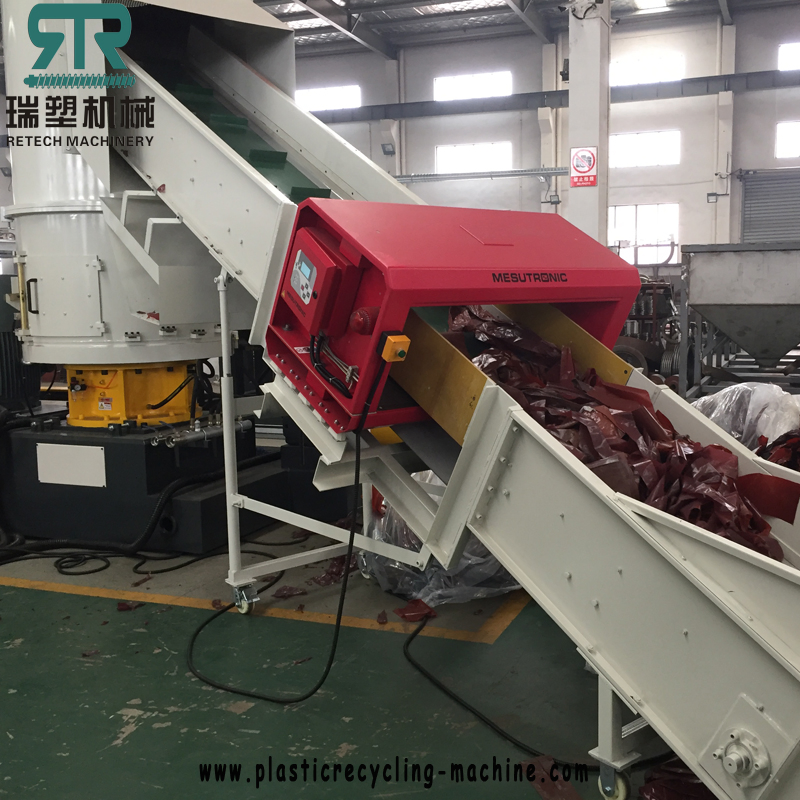

Belt conveyor---
Metal detector---
Compactor---
Extruder---
Filter---
Die face cutter---
Water cooling---
Dryer---
Silo---
Electric system
Main Features of Plastic Offcut HDPE LDPE LLDPE Bag Film Compactor Pelletizing Recycling Line/Plant:
1. Feeding way of plastic pelletizing recycling plant: Special designed force feeder, side feeder and compactor can push the material into the extruder high efficiently. Guarantee getting good capacity of the machine
2. Gear reducer of plastic pelletizing recycling plant: The high torque, hard-surface gear reducer with water cooling circulation system ensures the line running steady, silent, and long life.
3. Barrel and screw of plastic pelletizing recycling plant: The special material (38CrMoA1A & double alloy) and hardness treatment of the screw and barrel make extruder to be good wear resistance.
4. Degassing of plastic pelletizing recycling plant: Special design for the venting can discharge the moisture and waste air efficiently which ensure the finally plastic granules are with smooth surface, no water, no bubble, and good quality.
5. Hydraulic filter of plastic pelletizing recycling plant: Double position hydraulic filter works swift and easy to operate. Copper ring prevents the material leakage.
6. Cutting way of plastic pelletizing recycling plant: Two type cutting way, the noodle type and water ring type makes the customer freely to choose.
7. Special designed die of plastic pelletizing recycling plant: All die holes size are special designed due to the material characters and our rich experience to make machines.
8. Cooling way of plastic pelletizing recycling plant: Most of the materials are cooled by water. Some like PVC are cooled by wind. e with smooth surface, no water, no bubble, and good quality.
9. Cutting way of plastic pelletizing recycling plant: pineapple cutter is for the noodle cutting way, and die face cutter for the water ring cutting way.
10. Package of the final products of plastic pelletizing recycling plant: Final products granules will be blowing into silo, which will be packaged by manual or packaging scale machine
11. Electric parts of plastic pelletizing recycling plant: Siemens, Schneider, Fuji, ABB, Mitsubishi, TECO all electric parts customized.

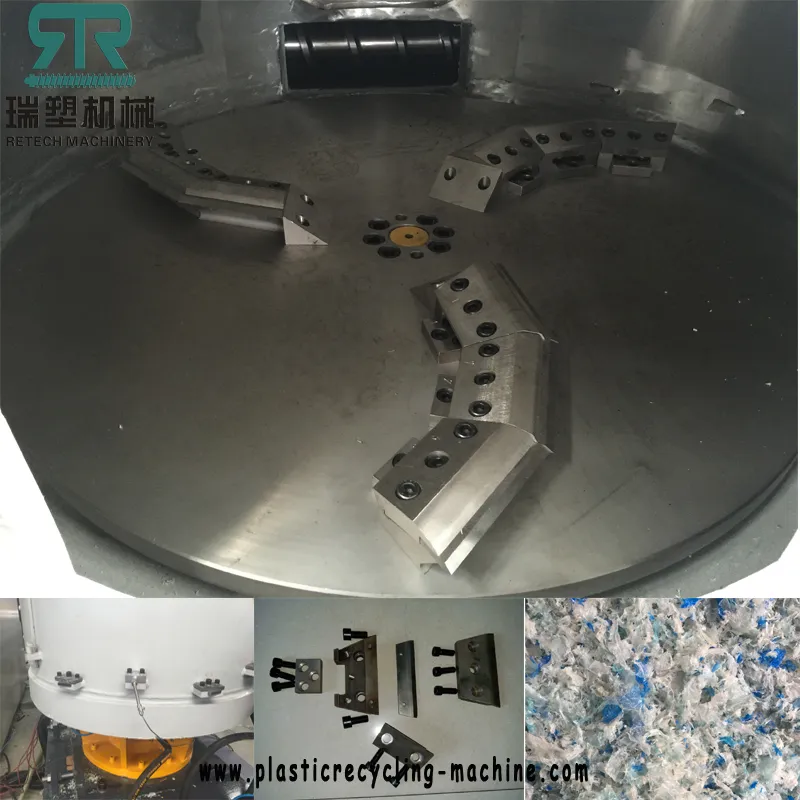

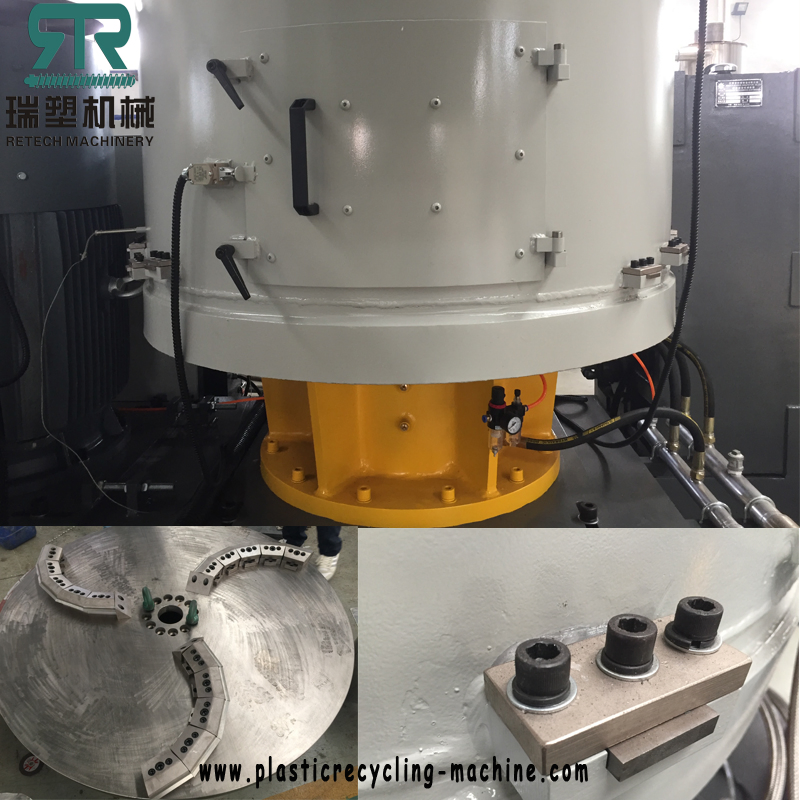

The compactor blades:
By friction moving in compactor,the thick and moiscture films will get dry after fast cutting inside of compactor,the moisture will be discharged by top cyclone. The dryed films will be moved to special designed screw for extrusion system.

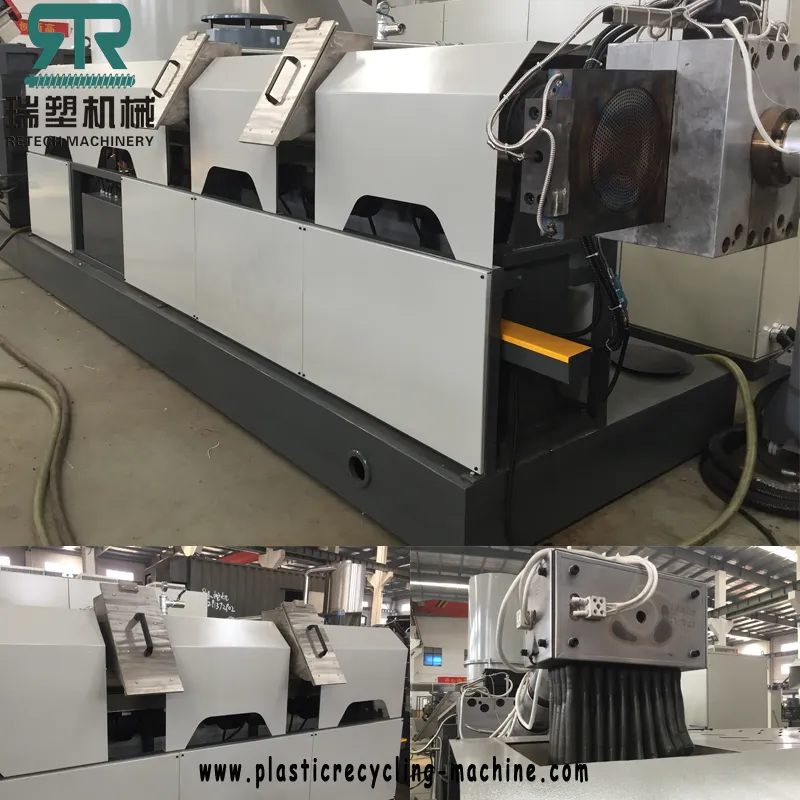

The degassing system/Vent degassing:
The efficiency degassing system can be move the remaining moisture and some dirty cells after the films melted by heated screw.

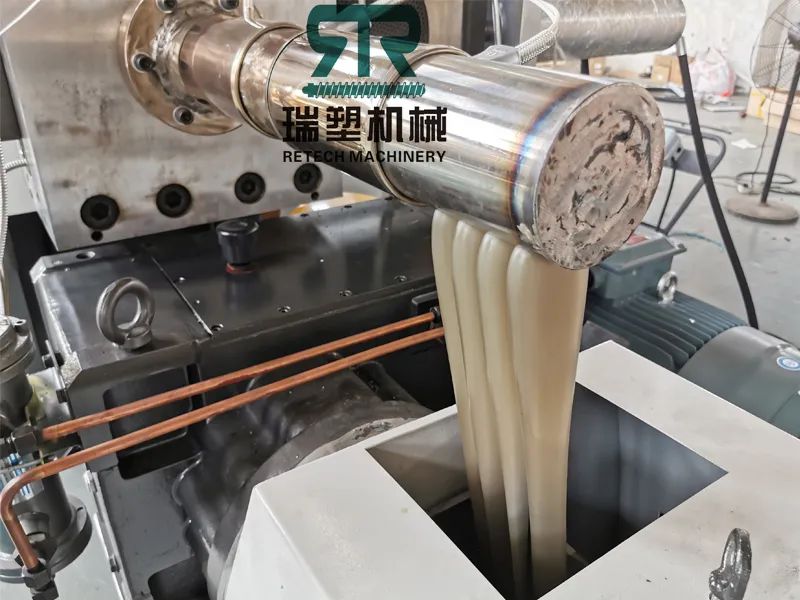

The noodle type connection between main to baby extruder:

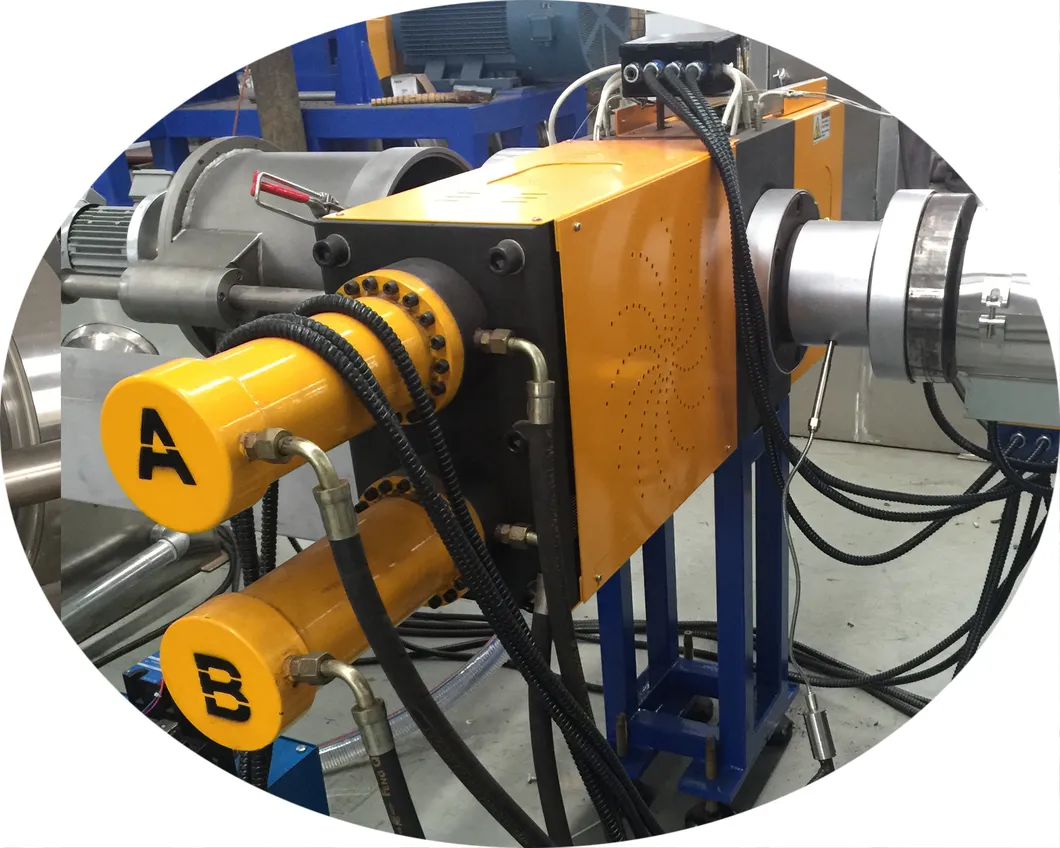

The filter system:
It is very important to choose the filter, usually it is single board double station filter design or double board four station design. You can put 1 layer to 5 layer according to pellets using purpose. Customer can set a current range to remind changing nets by alarming.
TC Series Plastic PE PP Film Granulating Line
| Model | Diameter of screw | PE capacity | PP capacity |
| TCDJ-85 | Φ85mm | 150-200kg/h | 150-200kg/h |
| TCSJ-85/85 | Φ85/85mm | 150-200kg/h | 150-200kg/h |
| TCDJ-100 | Φ100mm | 280-350kg/h | 250-300kg/h |
| TCSJ-100/100 | Φ100/100mm | 280-350kg/h | 250-300kg/h |
| TCDJ-130 | Φ130mm | 480-550kg/h | 400-500kg/h |
| TCSJ-130/130 | Φ130/130mm | 480-550kg/h | 400-500kg/h |
| TCDJ-160 | Φ160mm | 650-800kg/h | 600-750kg/h |
| TCSJ-160/160 | Φ160/160mm | 650-800kg/h | 600-750kg/h |
| TCDJ-180 | Φ180mm | 800-1200kg/h | 750-1000kg/h |
| TCSJ-180/180 | Φ180/180mm | 800-1200kg/h | 750-1000kg/h |
360°services:
Customer requirements →Scheme designed →confirmed by customers →
order fixed →manufacturing →trial running in our factory →confirmed by customers →shipped →engineer available overseas →whole life after sales services
Contacts us:
RETECH is an experienced and professional manufacturing for series plastic washing recycling machine/ plastic granulating recycling machine including PET bottle recycling machines, PE PP film recycling machines, plastic PE PP PS ABS PET PC PVC LD HD LLD BOPP granulating line, water treatment for the waste water from washing line, and auxiliary equipment for plastic recycling....
If you are interesting more details of our products, please contact with us no hesitation!
