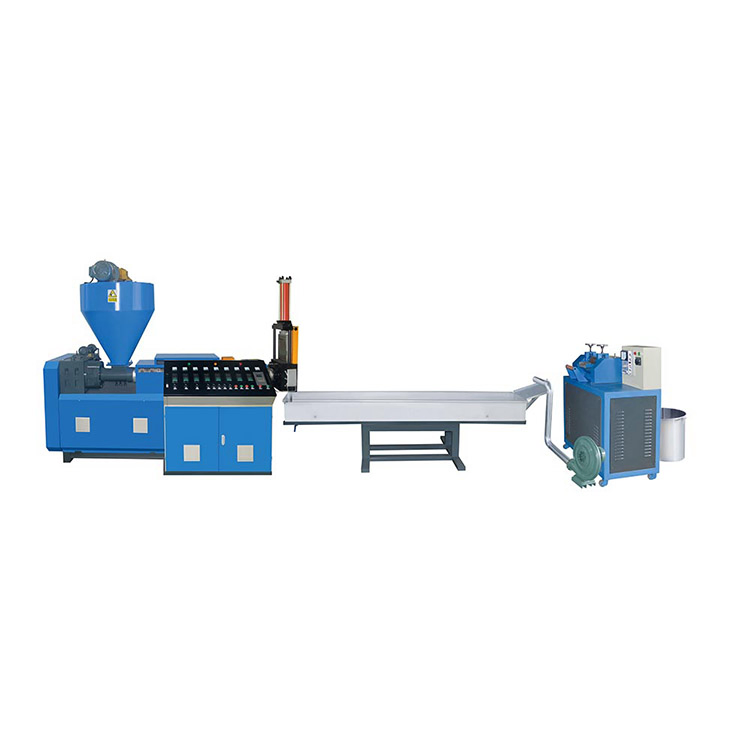

Plastic Recycling Machine Waste Line Granulator Plastic Recycling Machine
Product Description 1. Screw and barrel: made of 38 CrMoAl, inlet mouth is coverd special alloyMODELZLJCapacity50-500KGRaw MaterialPE,PP,PVC,EPS,PET ETCProcessForce Feeder --- Extruding-Water Cooling----Air Blower----Cutter ---Material Receiver Warranty2 YearsInstallOversea Technician ServiceWelcome......
Send Inquiry
Product Description
Product Description
1. Screw and barrel: made of 38 CrMoAl, inlet mouth is coverd special alloy
MODEL | ZLJ |
Capacity | 50-500KG |
Raw Material | PE,PP,PVC,EPS,PET ETC |
Process | Force Feeder --- Extruding-Water Cooling----Air Blower----Cutter ---Material Receiver |
Warranty | 2 Years |
Install | Oversea Technician Service |
Welcome To Contact Us! Add To My Favorite Chat On Line | |
(screw dia.120,long dia.ratio 28:1 )
2. Gear box: ZLYJ225 made of top quality special alloy
3. Motor: 45 kw-4p General motor
4. Control box: digital meter
5. Heat loop: stainless steel and copper

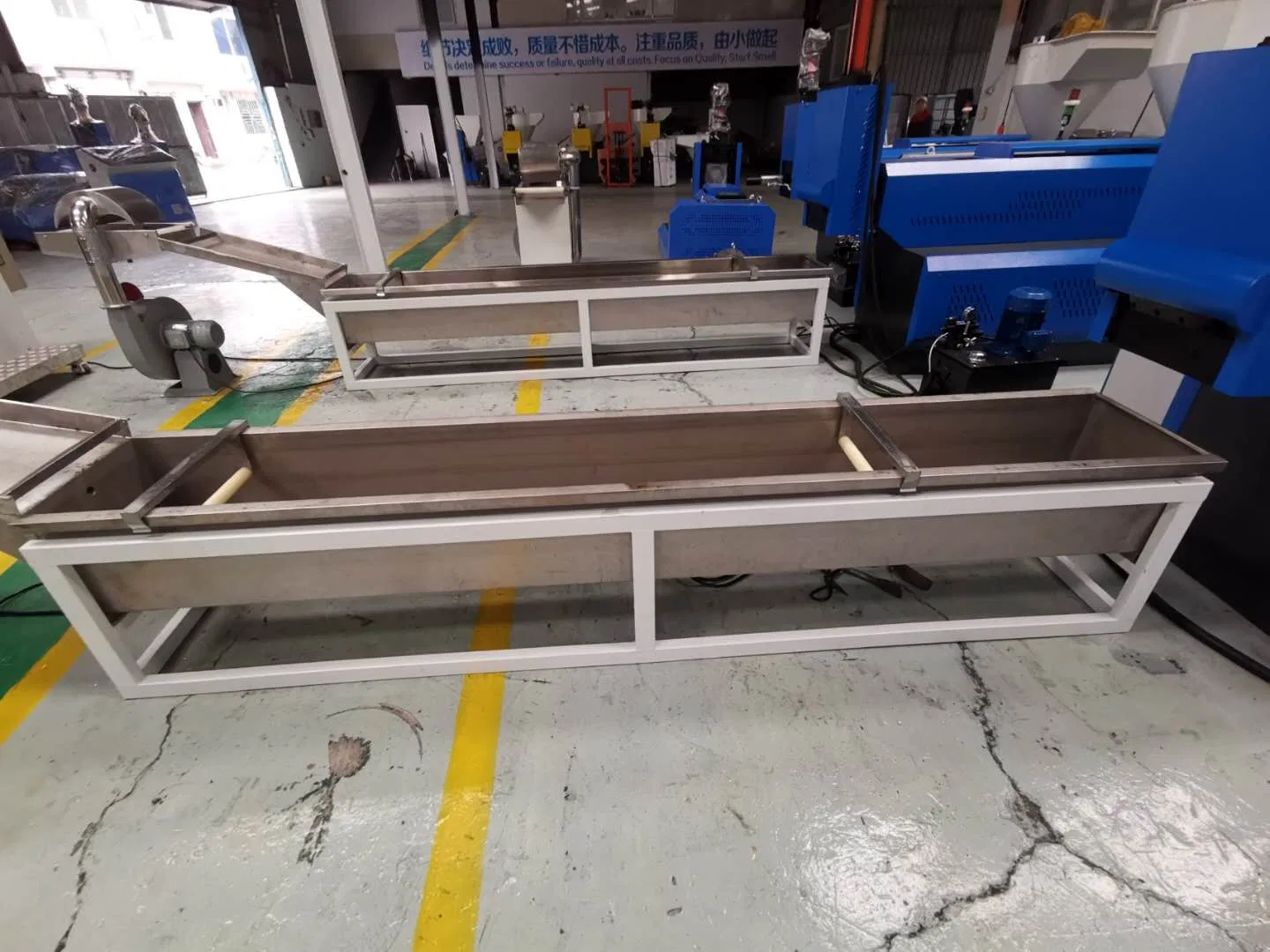

6. Water tank: water cooling 2500 mm
7. Blower:1.5kw-2p
8. Mould: hydraulic Mould head
9. Granule cutter : 200*160 , 3KW-4P electromagetic adjusable speed motor
10. Output:130-170 KG/HOUR
