PP PE Film Waste Plastic Recycling Machine

ME-300 PP PE Film Waste Plastic Recycling Machine


Introduction

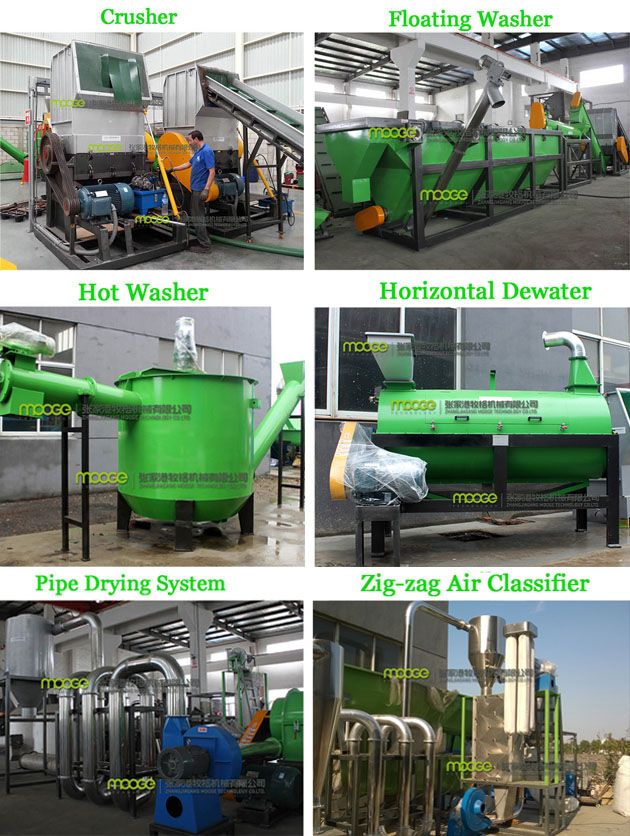

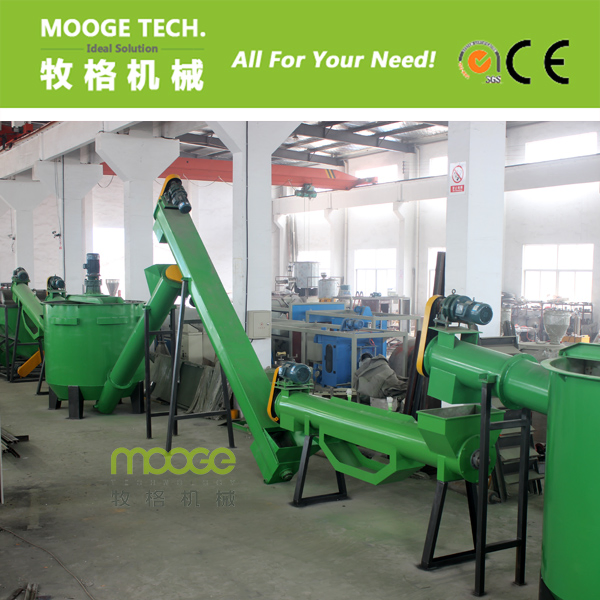

Detailed Photos of Recycling Machine for Your Reference:

Material: Baled or loose PP/PE film/bag/woven bag
Finished product: Clean PP/PE film scraps
Flake size: 30-40mm
Purpose of use: Be used to making PP/PE granules
We can customize the washing line according to client's requirement.


Production Process

1. Size Reduction - 2. Friction Washing - 3. Washing & Density Separation
- 4. Moisture Removal - 5. Product Collecting


Technical Data

Model: ME-300
Capacity: >300 KG Per Hour
Installed Power: 122.9KW
Hot Washing: Optional
Water Supply: 2-3 Ton Per Hour
Manpower: 3 Person
Estimated line size: 28m*2.5m*3.5m


Main Machines & Function

Plastic Crusher (Wet Type)
Δ Used for size reduction of the material into flakes
Δ Special V-shape rotor design for film/bag crushing
Δ Screen size: 100mm*20mm (length*width)
Δ Output size: 30-40mm; Capacity>300kg/hr (for film/bag/woven bag crushing)

Friction Washer
Δ Used to scrubbing flakes by high speed blades to remove dirt and water
Δ Rotary speed: 800rpm for high efficiency

Sink-Float Tank
Δ Used to separating the sinkable contamination and cleaning the PP/PE flakes by rolling drums
Δ Sink-float tank designed with 5PCS automatic drums on top for flakes automatic cleaning and conveying
Δ The side dirt lift screw conveyor is optional

Dewatering Machine
Δ Used for removal of the moisture from the flakes by high speed blades
Δ Rotary speed: 1500rpm for high efficiency
Δ Moisture content remain: 5-8%

Hot Air Drying System
Δ Used for reducing moisture content from flakes by hot air
Δ Moisture content remain: <3%


Optional Machine

Hot Washing Tank
Δ Used to washing the flakes by hot water to remove glue and greasy dirt
Δ Feeding caustic soda/detergent to wash
Δ Heating by electricity or customized
Δ Tank outside with heating protecting layer made of rockwool
Δ Special design for PP/PE recycling
