Sea Food Box Fish Container Dish Foam Pallet Foam Plastic Styrofoam Densifier
EPE EPS EPX XPS EPP HIPS PUR EVA recycling units cold extruder Styrofoam pressorMain Features:1. As a kind plastic foam densifier, it is applied to a wide usage to compressing and hot melting machine EPS EPP EPE XPS PUR EVA...2. The hot melting machine could be used in many places, such as super mar......
Send Inquiry
Product Description
EPE EPS EPX XPS EPP HIPS PUR EVA recycling units cold extruder Styrofoam pressor
Main Features:
1. As a kind plastic foam densifier, it is applied to a wide usage to compressing and hot melting machine EPS EPP EPE XPS PUR EVA...
2. The hot melting machine could be used in many places, such as super market, schools, hospitals, small-sized warehouse, retail stores, and seafood markets...
3. The hot melting machine has excellent performance, compacting dimension, low noise, easily and convenient operating and maintenance…
4. Ingenious designed feeding hopper, one aspect it could prevent the material jumps out when crushed, the aspect it could also to collect all material into one point to push the material direction down and helping to feed the material into extruder.
5. Exquisite structure of blades, especially experienced designing to the angles of all blades, which could guarantee hot melting machine high efficient crushing performance with high capacity, but also could press the crushed material blocks into the extruder to increase the capacity of whole machine.
With ceramic heaters on the extruder, it could make the material good plasticizing and long life working.
6. The melted material comes out from extruder, it could be collected by steel tank to get material cube block, but also could be cut by automatic pneumatic cutter to get small material blocks. The size of the material blocks could be adjusted.
7. The density of the block can reach 500-600kg per cubic meter. One container can load more than 20 tons material.

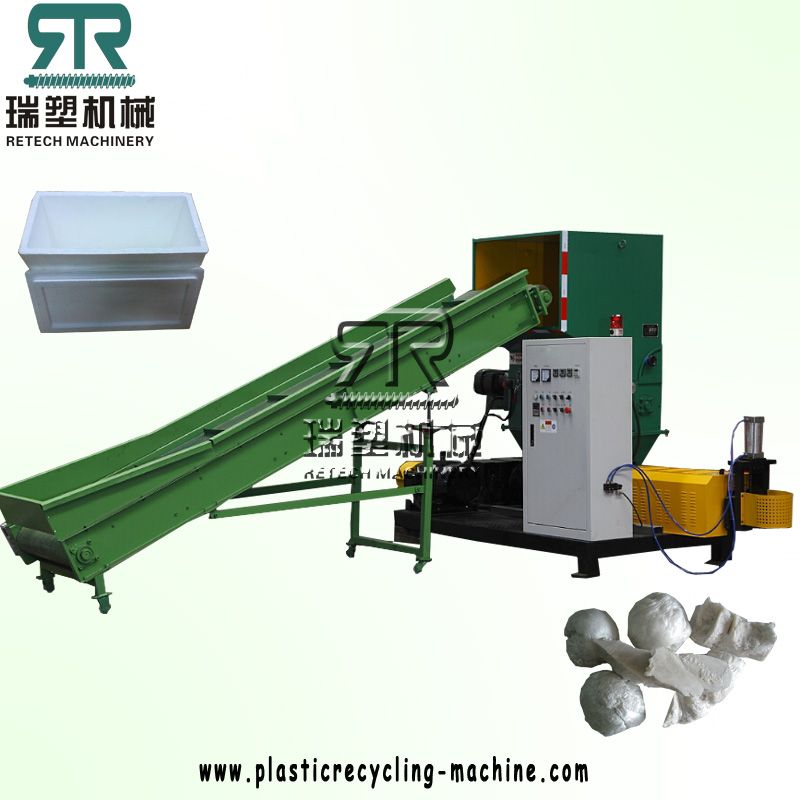

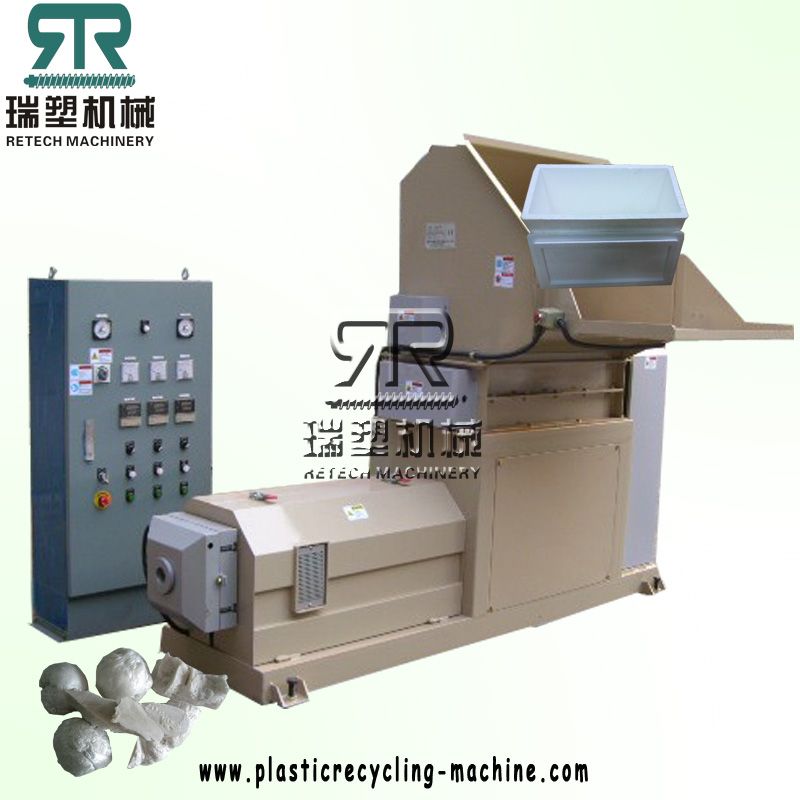

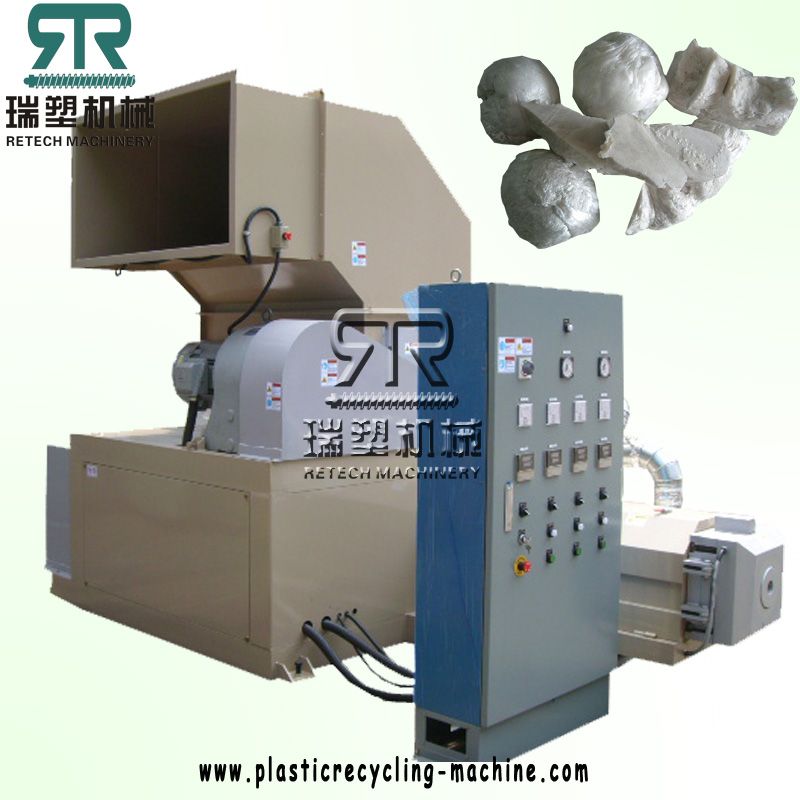

Styrofoam hot melting machine model:
2. EPS EPP EPE XPS PUR EVA compactor
Main Features:
1. As a kind plastic foam densifier, it is applied to a wide usage to compress and hot melting machine EPS EPP EPE XPS PUR EVA...
2. The Styrofoam compactor could be used in many places, such as super market, schools, hospitals, small-sized warehouse, retail stores, and seafood markets...
3. The Styrofoam compactor press the plastic foam from big to small size high efficiently, the compression ratio could arrive at 1:30~1:50, the compressed material block density could be 350kg/m³, and then it is easy to transport and recycle for next step.
4. The Styrofoam compactor has excellent performance, compacting dimension, low noise, easily and convenient operating and maintenance…
5. Ingenious designed feeding hopper, one aspect it could prevent the material jumps out when crushed, the aspect it could also to collect all material into one point to push the material direction down and helping to feed the material into extruder.
6. Exquisite structure of blades, especially experienced designing to the angles of all blades, which could guarantee high efficient crushing performance with high capacity, but also could press the crushed material blocks into the extruder to increase the capacity of whole machine.
7. Compacting screw and hydraulic pressing, which makes the compression process high efficient and good performance. All parts compacted into one machine, saving cost, low energy consumption, small space covering, which makes the machine to be portable type.
8. The Styrofoam compactor is controlled by PLC automatic controlled, easily operating, stable working performance.
9. The block is usually compressed to be 250×250mm block.

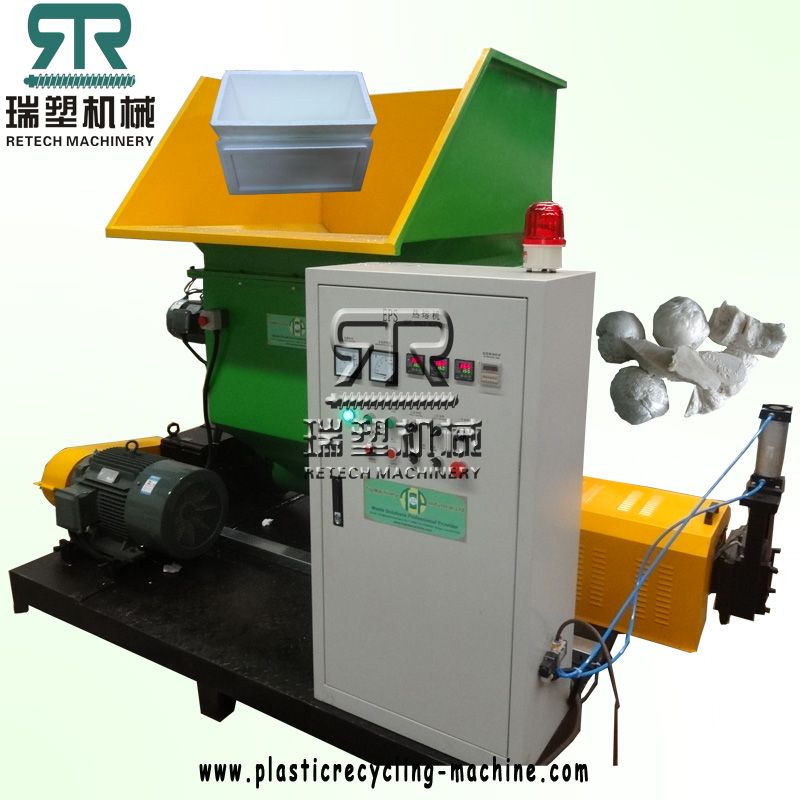

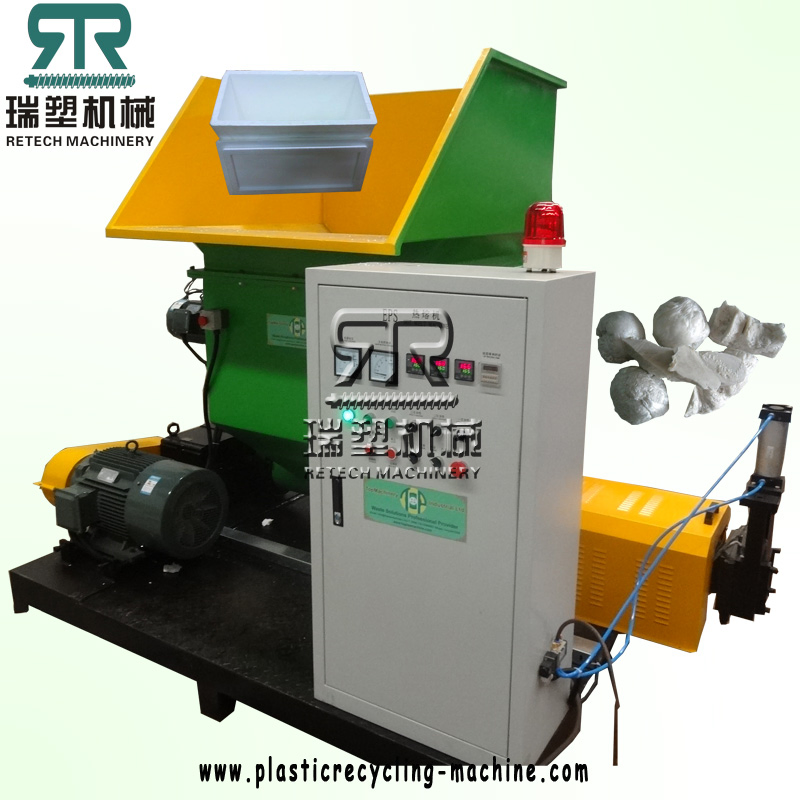

Styrofoam cold compactor model:
Crusher for both styrofoam hot melting machine and cold compactor
360°services:
Customer requirements →Scheme designed →confirmed by customers →order fixed →manufacturing →trial running in our factory →confirmed by customers →shipped →engineer available overseas →whole life after sales services

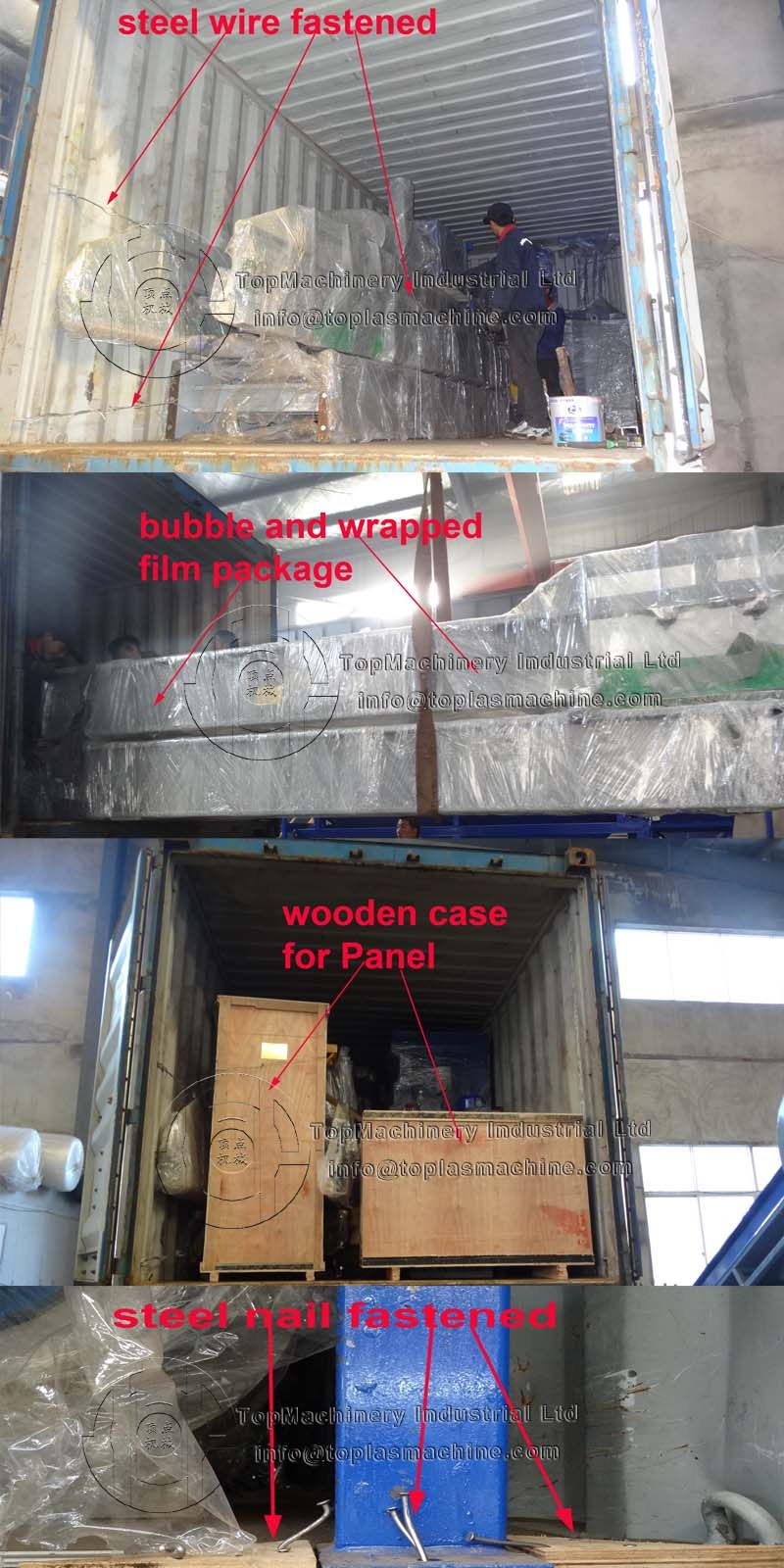

Package and Loading:
contacts:
Topmachinery is an experienced and professional manufacturing for series plastic washing recycling machine/ plastic granulating recycling machine including ET bottle recycling machines, PE PP film recycling machines, plastic PE PP PS ABS PET PC PVC LD HD LLD BOPP granulating line, water treatment for the waste water from washing line, and auxiliary equipment for plastic recycling....
If you are interesting more details of our products, please contact with us no hesitation!
plasticmachine.en.made-in-china.com
Mob: 0086-152-52900921
Tel: 0086-511-83302065
Main Features:
1. As a kind plastic foam densifier, it is applied to a wide usage to compressing and hot melting machine EPS EPP EPE XPS PUR EVA...
2. The hot melting machine could be used in many places, such as super market, schools, hospitals, small-sized warehouse, retail stores, and seafood markets...
3. The hot melting machine has excellent performance, compacting dimension, low noise, easily and convenient operating and maintenance…
4. Ingenious designed feeding hopper, one aspect it could prevent the material jumps out when crushed, the aspect it could also to collect all material into one point to push the material direction down and helping to feed the material into extruder.
5. Exquisite structure of blades, especially experienced designing to the angles of all blades, which could guarantee hot melting machine high efficient crushing performance with high capacity, but also could press the crushed material blocks into the extruder to increase the capacity of whole machine.
With ceramic heaters on the extruder, it could make the material good plasticizing and long life working.
6. The melted material comes out from extruder, it could be collected by steel tank to get material cube block, but also could be cut by automatic pneumatic cutter to get small material blocks. The size of the material blocks could be adjusted.
7. The density of the block can reach 500-600kg per cubic meter. One container can load more than 20 tons material.
Styrofoam hot melting machine model:
| Model | Motor | Capacity |
| TFHM100 | 7.5/3KW | 50kg/h |
| TFHM200 | 4.4/15/10KW | 100~120kg/h |
| TFHM400 | 8.8/22/14KW | 180~200kg/h |
2. EPS EPP EPE XPS PUR EVA compactor
Main Features:
1. As a kind plastic foam densifier, it is applied to a wide usage to compress and hot melting machine EPS EPP EPE XPS PUR EVA...
2. The Styrofoam compactor could be used in many places, such as super market, schools, hospitals, small-sized warehouse, retail stores, and seafood markets...
3. The Styrofoam compactor press the plastic foam from big to small size high efficiently, the compression ratio could arrive at 1:30~1:50, the compressed material block density could be 350kg/m³, and then it is easy to transport and recycle for next step.
4. The Styrofoam compactor has excellent performance, compacting dimension, low noise, easily and convenient operating and maintenance…
5. Ingenious designed feeding hopper, one aspect it could prevent the material jumps out when crushed, the aspect it could also to collect all material into one point to push the material direction down and helping to feed the material into extruder.
6. Exquisite structure of blades, especially experienced designing to the angles of all blades, which could guarantee high efficient crushing performance with high capacity, but also could press the crushed material blocks into the extruder to increase the capacity of whole machine.
7. Compacting screw and hydraulic pressing, which makes the compression process high efficient and good performance. All parts compacted into one machine, saving cost, low energy consumption, small space covering, which makes the machine to be portable type.
8. The Styrofoam compactor is controlled by PLC automatic controlled, easily operating, stable working performance.
9. The block is usually compressed to be 250×250mm block.
Styrofoam cold compactor model:
| Model | Motor | Capacity |
| TFCM150 | 1.1/3KW | 50kg/h |
| TFCM250 | 4.4/7.5/1.5KW | 100kg/h |
| TFCM350 | 8.8/11/1.5KW | 150kg/h |
Crusher for both styrofoam hot melting machine and cold compactor
360°services:
Customer requirements →Scheme designed →confirmed by customers →order fixed →manufacturing →trial running in our factory →confirmed by customers →shipped →engineer available overseas →whole life after sales services
Package and Loading:
contacts:
Topmachinery is an experienced and professional manufacturing for series plastic washing recycling machine/ plastic granulating recycling machine including ET bottle recycling machines, PE PP film recycling machines, plastic PE PP PS ABS PET PC PVC LD HD LLD BOPP granulating line, water treatment for the waste water from washing line, and auxiliary equipment for plastic recycling....
If you are interesting more details of our products, please contact with us no hesitation!
plasticmachine.en.made-in-china.com
Mob: 0086-152-52900921
Tel: 0086-511-83302065
